Twist Drill
-
American Standard

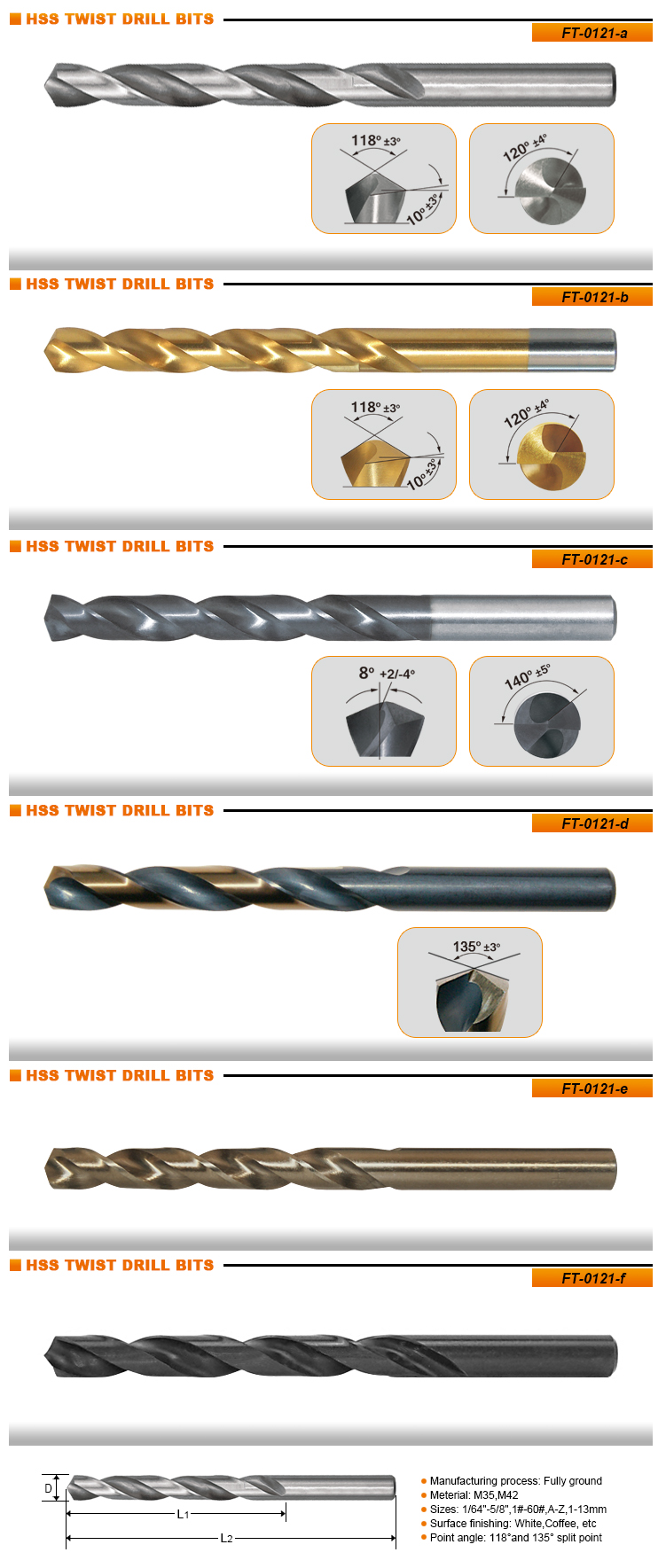

Jobber Length Drills
Size
Decimal
Flute Length
Overall Length
Item No.
Equivalent
L1
L2
1/16
0.0625
7/8
1-7/8
FT0121010116
5/64
0.0781
1
2
FT0121010564
3/32
0.0938
1-1/4
2-1/4
FT0121010332
7/64
0.1094
1-1/2
2-5/8
FT0121010764
1/8
0.1250
1-5/8
2-3/4
FT0121010108
9/64
0.1406
1-3/4
2-7/8
FT0121010964
5/32
0.2188
2
3-1/8
FT0121010532
11/64
0.1719
2-1/8
3-1/4
FT0121011164
3/16
0.1875
2-5/16
3-1/2
FT0121010316
13/64
0.2031
2-7/16
3-5/8
FT0121011364
7/32
0.2188
2-1/2
3-3/4
FT0121010732
15/64
0.2344
2-5/8
3-3/7
FT0121011564
1/4
0.2500
2-3/4
4
FT0121010104
17/64
0.2656
2-7/8
4-1/8
FT0121011764
9/32
0.2812
2-15/16
4-1/4
FT0121010932
19/64
0.2969
3-1/16
4-1/4
FT0121011964
5/16
0.3125
3-3/16
4-1/2
FT0121010516
21/64
0.3281
3-5/10
4-3/4
FT0121012164
11/32
0.3438
3-7/16
4-5/8
FT0121011132
23/64
0.3594
3-1/2
4-7/8
FT0121012364
3/8
0.3750
3-5/8
5
FT0121010308
25/64
0.3906
3-3/4
5-1/8
FT0121012564
13/32
0.4062
3-7/8
5-1/4
FT0121011332
27/64
0.4219
3-15/16
5-3/8
FT0121012764
7/16
0.4375
4-1/16
5-1/2
FT0121010716
29/64
0.4531
4-3/16
5-5/8
FT0121012964
15/32
0.4688
4-5/16
5-3/4
FT0121011532
31/64
0.4844
4-3/8
5-7/8
FT0121013164
1/2
0.5000
4-1/2
6
FT0121010102
Size
Decimal
Flute Length
Overall Length
Item No.
Equivalent
L1
L2
1#
0.2280
2-5/8
3-7/8
FT0121020001
2#
0.2210
2-5/8
3-7/8
FT0121020002
3#
0.2130
2-1/2
3-3/4
FT0121020003
4#
0.2090
2-1/2
3-3/4
FT0121020004
5#
0.2055
2-1/2
3-3/4
FT0121020005
6#
0.2040
2-1/2
3-3/4
FT0121020006
7#
0.2010
2-7/16
3-5/8
FT0121020007
8#
0.1990
2-7/16
3-5/8
FT0121020008
9#
0.1960
2-7/16
3-5/8
FT0121020009
10#
0.1935
2-7/16
3-5/8
FT0121020010
11#
0.1910
2-5/16
3-1/2
FT0121020011
12#
0.1890
2-5/16
3-1/2
FT0121020012
13#
0.1850
2-5/16
3-1/2
FT0121020013
14#
0.1820
2-3/16
3-3/8
FT0121020014
15#
0.1800
2-3/16
3-3/8
FT0121020015
16#
0.1770
2-3/16
3-3/8
FT0121020016
17#
0.1730
2-3/16
3-3/8
FT0121020017
18#
0.1695
2-1/8
3-1/4
FT0121020018
19#
0.1660
2-1/8
3-1/4
FT0121020019
20#
0.1610
2-1/8
3-1/4
FT0121020020
21#
0.1590
2-1/8
3-1/4
FT0121020021
22#
0.1570
2
3-1/8
FT0121020022
23#
0.1540
2
3-1/8
FT0121020023
24#
0.1520
2
3-1/8
FT0121020024
25#
0.1495
1-7/8
3
FT0121020025
26#
0.1470
1-7/8
3
FT0121020026
27#
0.1440
1-7/8
3
FT0121020027
28#
0.1405
1-3/4
2-7/8
FT0121020028
29#
0.1360
1-3/4
2-7/8
FT0121020029
30#
0.1285
1-5/8
2-3/4
FT0121020030
31#
0.1200
1-5/8
2-3/4
FT0121020031
32#
0.1160
1-5/8
2-3/4
FT0121020032
33#
0.1130
1-1/2
2-5/8
FT0121020033
34#
0.1110
1-1/2
2-5/8
FT0121020034
35#
0.1100
1-1/2
2-5/8
FT0121020035
36#
0.1065
1-7/16
2-1/2
FT0121020036
37#
0.1040
1-7/16
2-1/2
FT0121020037
38#
0.1015
1-7/16
2-1/2
FT0121020038
39#
0.0995
1-3/8
2-3/8
FT0121020039
40#
0.0980
1-3/8
2-3/8
FT0121020040
41#
0.0960
1-3/8
2-3/8
FT0121020041
42#
0.0935
1-1/4
2-1/4
FT0121020042
43#
0.0890
1-1/4
2-1/4
FT0121020043
44#
0.0860
1-1/8
2-1/8
FT0121020044
45#
0.0820
1-1/8
2-1/8
FT0121020045
46#
0.0810
1-1/8
2-1/8
FT0121020046
47#
0.0785
1
2
FT0121020047
48#
0.0760
1
2
FT0121020048
49#
0.0730
1
2
FT0121020049
50#
0.0700
1
2
FT0121020050
51#
0.0670
1
2
FT0121020051
52#
0.0635
7/8
1-7/8
FT0121020052
53#
0.0595
7/8
1-7/8
FT0121020053
54#
0.0550
7/8
1-7/8
FT0121020054
55#
0.0520
7/8
1-7/8
FT0121020055
56#
0.0465
3/4
1-3/4
FT0121020056
57#
0.0430
3/4
1-3/4
FT0121020057
58#
0.0420
11/16
1-5/8
FT0121020058
59#
0.0410
11/16
1-5/8
FT0121020059
60#
0.0400
11/16
1-5/8
FT0121020060
,
Size
Decimal
Flute Length
Overall Length
Item No.
Equivalent
L1
L2
A
0.2340
2-5/8
3-7/8
FT0121030001
B
0.2380
2-3/4
4
FT0121030002
C
0.2420
2-3/4
4
FT0121030003
D
0.2460
2-3/4
4
FT0121030004
E
0.2500
2-3/4
4
FT0121030005
F
0.2570
2-7/8
4-1/8
FT0121030006
G
0.2610
2-7/8
4-1/8
FT0121030007
H
0.2660
2-7/8
4-1/8
FT0121030008
I
0.2720
2-7/8
4-1/8
FT0121030009
J
0.2770
2-7/8
4-1/8
FT0121030010
K
0.2810
2-15/16
4-1/4
FT0121030011
L
0.2900
2-15/16
4-1/4
FT0121030012
M
0.2950
3-1/16
4-3/8
FT0121030013
N
0.3020
3-1/16
4-3/8
FT0121030014
O
0.3160
3-3/16
4-1/2
FT0121030015
P
0.3230
3-5/16
4-5/8
FT0121030016
Q
0.3320
3-7/16
4-3/4
FT0121030017
R
0.3390
3-7/16
4-3/4
FT0121030018
S
0.3480
3-1/2
4-7/8
FT0121030019
T
0.3580
3-1/2
4-7/8
FT0121030020
U
0.3680
3-5/8
5
FT0121030021
V
0.3770
3-5/8
5
FT0121030022
W
0.3860
3-3/4
5-1/8
FT0121030023
X
0.3970
3-3/4
5-1/8
FT0121030024
Y
0.4040
3-7/8
5-1/4
FT0121030025
Z
0.4130
3-7/8
5-1/4
FT0121030026
Size
Decimal
Flute Length
Overall Length
Item No.
Equivalent
L1
L2
1.00mm
0.0394
17
41
FT0121040100
1.50mm
0.0591
22
48
FT0121040150
2.00mm
0.0787
25
51
FT0121040200
2.50mm
0.0984
35
60
FT0121040250
3.00mm
0.1181
41
70
FT0121040300
3.30mm
0.1299
44
73
FT0121040330
3.50mn
0.1378
44
73
FT0121040350
4.00mm
0.1575
54
83
FT0121040400
4.20mm
0.1654
54
83
FT0121040420
4.50mm
0.1772
56
86
FT0121040450
5.00mm
0.1969
62
92
FT0121040500
5.50mm
0.2165
64
95
FT0121040550
6.00mm
0.2362
70
102
FT0121040600
6.50mm
0.2559
73
105
FT0121040650
7.00mm
0.2756
73
105
FT0121040700
7.50mm
0.2953
78
111
FT0121040750
8.00mm
0.3150
81
114
FT0121040800
8.50mm
0.3346
87
121
FT0121040850
9.00mm
0.3543
89
124
FT0121040900
9.50mm
0.3740
92
127
FT0121040950
10.00mm
0.3937
95
130
FT0121041000
10.50mm
0.4134
98
133
FT0121041050
11.00mm
0.4331
103
140
FT0121041100
11.50mm
0.4528
106
143
FT0121041150
12.00mm
0.4724
111
149
FT0121041200
12.50mm
0.4921
114
152
FT0121041250
13.00mm
0.5118
114
152
FT0121041300
【
