Home - Products - Twist Drill - German Standard

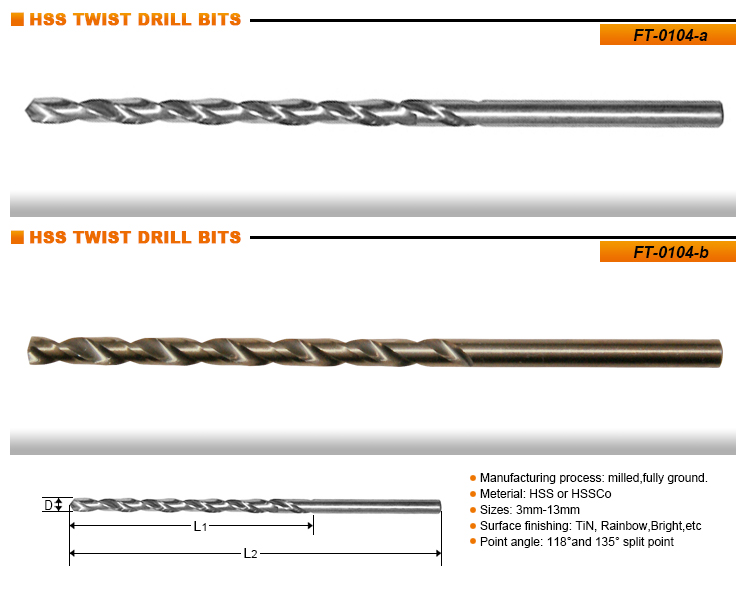

DIN 1869

　　

Diameter	Flute Length	Overall Length	Item No.
D	L1	L2	Item No.
3	130	190	FT0104030190
3.5	145	210	FT0104350210
4	150	220	FT0104040220
4.5	160	235	FT0104450235
5	170	245	FT0104050245
5.5	180	260	FT0104550260
6	180	260	FT0104060260
6.5	190	275	FT0104650275
7	200	290	FT0104070290
7.5	200	290	FT0104750290
8	210	305	FT0104080305
8.5	210	305	FT0104850305
9	220	320	FT0104090320
9.5	220	320	FT0104950320
10	235	340	FT0104100340
10.5	235	340	FT0104105340
11	250	365	FT0104110365
11.5	250	365	FT0104115365
12	260	375	FT0104120375
12.5	260	375	FT0104125375
13	260	375	FT0104130375

Diameter	Flute Length	Overall Length	Item No.
D	L1	L2	Item No.
3.5	180	265	FT0104350265
4	190	280	FT0104040280
4.5	200	295	FT0104450295
5	210	315	FT0104050315
5.5	225	330	FT0104550330
6	225	330	FT0104060330
6.5	235	350	FT0104650350
7	250	370	FT0104070370
7.5	250	370	FT0104750370
8	265	390	FT0104080390
8.5	265	390	FT0104850390
9	280	410	FT0104090410
9.5	280	410	FT0104950410
10	295	430	FT0104100430
10.5	295	430	FT0104105430
11	310	455	FT0104110455
11.5	310	455	FT0104115455
12	330	480	FT0104120480
12.5	330	480	FT0104125480
13	330	480	FT0104130480

Diameter	Flute Length	Overall Length	Item No.
D	L1	L2	Item No.
2	85	125	FT0104020125
2.5	95	140	FT0104250140
3	100	150	FT0104030150
3.5	115	165	FT0104350165
4	120	175	FT0104040175
4.5	125	185	FT0104450185
5	135	195	FT0104050195
5.5	140	205	FT0104550205
6	140	205	FT0104060205
6.5	150	215	FT0104650215
7	155	225	FT0104070225
7.5	155	225	FT0104750225
8	165	240	FT0104080240
8.5	165	240	FT0104850240
9	175	250	FT0104090250
9.5	175	250	FT0104950250
10	185	265	FT0104100265
10.5	185	265	FT0104105265
11	195	280	FT0104110280
11.5	195	280	FT0104115280
12	205	295	FT0104120295
12.5	205	295	FT0104125295
13	205	295	FT0104130295
