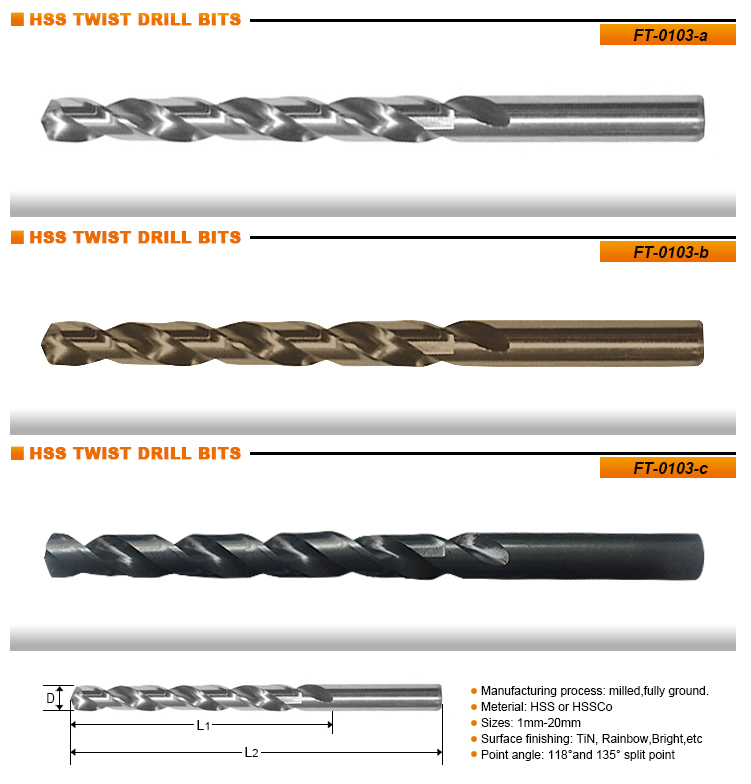

DIN 340

Diameter	Flute Length	Overall Length	Item No.
D	L1	L2	Item No.
1	33	56	FT0103010056
1.1	37	60	FT0103110060
1.2	41	65	FT0103120065
1.3	41	65	FT0103130065
1.4	45	70	FT0103140070
1.5	45	70	FT0103150070
1.6	50	76	FT0103160076
1.7	50	76	FT0103170076
1.8	53	80	FT0103180080
1.9	53	80	FT0103190080
2	56	85	FT0103020085
2.1	56	85	FT0103210085
2.2	56	90	FT0103220090
2.3	56	90	FT0103230090
2.4	62	95	FT0103240095
2.5	62	95	FT0103250095
2.6	62	95	FT0103260095
2.7	66	100	FT0103270100
2.8	66	100	FT0103280100
2.9	66	100	FT0103290100
3	66	100	FT0103030100
3.1	69	106	FT0103310106
3.2	69	106	FT0103320106
3.3	69	106	FT0103330106
3.4	73	110	FT0103340112
3.5	73	110	FT0103350112
3.6	73	110	FT0103360112
3.7	73	110	FT0103370112
3.8	78	119	FT0103380119
3.9	78	119	FT0103390119
4	78	119	FT0103040119
4.1	78	119	FT0103410119
4.2	78	119	FT0103420119
4.3	82	126	FT0103430126
4.4	82	126	FT0103440126
4.5	82	126	FT0103450126
4.6	82	126	FT0103460126
4.7	82	126	FT0103470126
4.8	87	132	FT0103480132
4.9	87	132	FT0103490132
5	87	132	FT0103050132
5.1	87	132	FT0103510132
5.2	87	132	FT0103520132
5.3	87	132	FT0103530132
5.4	91	139	FT0103540139
5.5	91	139	FT0103550139
5.6	91	139	FT0103560139
5.7	91	139	FT0103570139
5.8	91	139	FT0103580139
5.9	91	139	FT0103590139
6	91	139	FT0103060139
6.1	97	148	FT0103610148
6.2	97	148	FT0103620148
6.3	97	148	FT0103630148
6.4	97	148	FT0103640148
6.5	97	148	FT0103650148
6.6	97	148	FT0103660148
6.7	97	148	FT0103670148
6.8	102	156	FT0103680156
6.9	102	156	FT0103690156
7	102	156	FT0103070156
7.1	102	156	FT0103710156
7.2	102	156	FT0103720156
7.3	102	156	FT0103730156
7.4	102	156	FT0103740156
7.5	102	156	FT0103750156
7.6	109	165	FT0103760165
7.7	109	165	FT0103770165
7.8	109	165	FT0103780165
7.9	109	165	FT0103790165
8	109	165	FT0103080165
8.1	109	165	FT0103810165
8.2	109	165	FT0103820165
8.3	109	165	FT0103830165
8.4	109	165	FT0103840165
8.5	109	165	FT0103850165
8.6	115	175	FT0103860175
8.7	115	175	FT0103870175
8.8	115	175	FT0103880175
8.9	115	175	FT0103890175
9	115	175	FT0103090175
9.1	115	175	FT0103910175
9.2	115	175	FT0103920175
9.3	115	175	FT0103930175
9.4	115	175	FT0103940175
9.5	115	175	FT0103950175
9.6	121	184	FT0103960184
9.7	121	184	FT0103970184
9.8	121	184	FT0103980184
9.9	121	184	FT0103990184
10	121	184	FT0103100184
10.1	121	184	FT0103101184
10.2	121	184	FT0103102184
10.3	121	184	FT0103103184
10.4	121	184	FT0103104184
10.5	121	184	FT0103105184
10.6	121	184	FT0103106184
10.7	128	195	FT0103107195
10.8	128	195	FT0103108195
10.9	128	195	FT0103109195
11	128	195	FT0103110195
11.1	128	195	FT0103111195
11.2	128	195	FT0103112195
11.3	128	195	FT0103113195
11.4	128	195	FT0103114195
11.5	128	195	FT0103115195
11.6	128	195	FT0103116195
11.7	128	195	FT0103117195
11.8	128	195	FT0103118195
11.9	134	205	FT0103119205
12	134	205	FT0103120205
12.1	134	205	FT0103121205
12.2	134	205	FT0103122205
12.3	134	205	FT0103123205
12.4	134	205	FT0103124205
12.5	134	205	FT0103125205
12.6	134	205	FT0103126205
12.7	134	205	FT0103127205
12.8	134	205	FT0103128205
12.9	134	205	FT0103129205
13	134	205	FT0103130205
13.1	134	205	FT0103131205
13.2	134	205	FT0103132205
13.3	140	214	FT0103133214
13.4	140	214	FT0103134214
13.5	140	214	FT0103135214
13.6	140	214	FT0103136214
13.7	140	214	FT0103137214
13.8	140	214	FT0103138214
13.9	140	214	FT0103139214
14	140	214	FT0103140214
14.25	144	220	FT0103143220
14.5	144	220	FT0103145220
14.75	144	220	FT0103148220
15	144	220	FT0103150220
15.25	149	227	FT0103153220
15.5	149	227	FT0103155227
15.75	149	227	FT0103158227
16	149	227	FT0103160227
16.25	154	235	FT0103163235
l6.5	154	235	FT0103l65235
16.75	154	235	FT0103168235
l7	154	235	FT0103l70235
17.25	158	241	FT0103173241
17.5	158	241	FT0103175241
17.75	158	241	FT0103178241
18	158	241	FT0103180241
18.25	162	247	FT0103183247
18.5	162	247	FT0103185247
18.75	162	247	FT0103188247
19	162	247	FT0103190247
19.25	166	254	FT0103193254
19.5	166	254	FT0103195254
19.75	166	254	FT0103198254
20	166	254	FT0103200254
