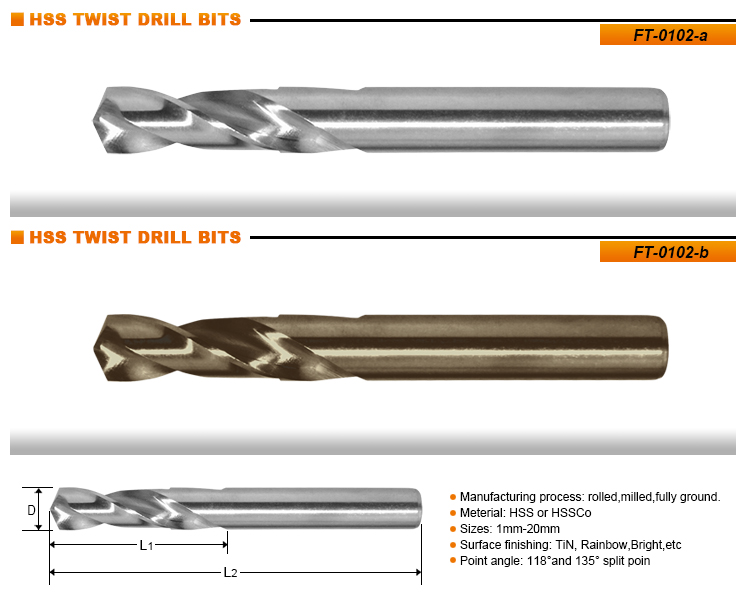

DIN 1897


Diameter Flute Length Overall Length Item No.
D L1 L2
1 6 26 FT0102010026
1.1 7 28 FT0102110028
1.2 8 30 FT0102120030
1.3 8 30 FT0102130030
1.4 9 32 FT0102140032
1.5 9 32 FT0102150032
1.6 10 34 FT0102160034
1.7 10 34 FT0102170034
1.8 11 36 FT0102180036
1.9 11 36 FT0102190036
2 12 38 FT0102020038
2.1 12 38 FT0102210038
2.2 13 40 FT0102220040
2.3 13 40 FT0102230040
2.4 14 43 FT0102240043
2.5 14 43 FT0102250043
2.6 14 43 FT0102260043
2.7 16 46 FT0102270046
2.8 16 46 FT0102280046
2.9 16 46 FT0102290046
3 16 46 FT0102030046
3.1 18 49 FT0102310049
3.2 18 49 FT0102320049
3.3 18 49 FT0102330049
3.4 20 52 FT0102340052
3.5 20 52 FT0102350052
3.6 20 52 FT0102360052
3.7 20 52 FT0102370052
3.8 22 55 FT0102380055
3.9 22 55 FT0102390055
4 22 55 FT0102040055
4.1 22 55 FT0102410055
4.2 22 55 FT0102420055
4.3 24 58 FT0102430058
4.4 24 58 FT0102440058
4.5 24 58 FT0102450058
4.6 24 58 FT0102460058
4.7 24 58 FT0102470058
4.8 26 62 FT0102480062
4.9 26 62 FT0102490062
5 26 62 FT0102050062
5.1 26 62 FT0102510062
5.2 26 62 FT0102520062
5.3 28 66 FT0102530066
5.4 28 66 FT0102540066
5.5 28 66 FT0102550066
5.6 28 66 FT0102560066
5.7 28 66 FT0102570066
5.8 28 66 FT0102580066
5.9 28 66 FT0102590066
6 28 66 FT0102060066
6.1 31 70 FT0102610070
6.2 31 70 FT0102620070
6.3 31 70 FT0102630070
6.4 31 70 FT0102640070
6.5 31 70 FT0102650070
6.6 31 70 FT0102660070
6.7 31 70 FT0102670070
6.8 34 74 FT0102680074
6.9 34 74 FT0102690074
7 34 74 FT0102070074
7.1 34 74 FT0102710074
7.2 34 74 FT0102720074
7.3 34 74 FT0102730074
7.4 34 74 FT0102740074
7.5 34 74 FT0102750074
7.6 37 79 FT0102760079
7.7 37 79 FT0102770079
7.8 37 79 FT0102780079
7.9 37 79 FT0102790079
8 37 79 FT0102080079
8.1 37 79 FT0102810079
8.2 37 79 FT0102820079
8.3 37 79 FT0102830079
8.4 37 79 FT0102840079
8.5 37 79 FT0102850079
8.6 40 84 FT0102860084
8.7 40 84 FT0102870084
12.7 51 102 FT0102127102
12.8 51 102 FT0102128102
12.9 51 102 FT0102129102
13 51 102 FT0102130102
13.1 51 102 FT0102131102
13.2 51 102 FT0102132102
13.3 54 107 FT0102133107
13.4 54 107 FT0102134107
13.5 54 107 FT0102135107
13.6 54 107 FT0102136107
13.7 54 107 FT0102137107
13.8 54 107 FT0102138107
13.9 54 107 FT0102139107
14 54 107 FT0102140107
14.25 56 111 FT0102142111
14.5 56 111 FT0102145111
14.75 56 111 FT0102147111
15 56 111 FT0102150111
15.25 58 115 FT0102152115
15.5 58 115 FT0102155115
15.75 58 115 FT0102157115
16 58 115 FT0102160115
16.25 58 119 FT0102162119
16.5 58 119 FT0102165119
16.75 58 119 FT0102167119
17 58 119 FT0102170119
17.25 62 123 FT0102172123
17.5 62 123 FT0102175123
17.75 62 123 FT0102177123
18 62 123 FT0102180123
18.25 62 127 FT0102182127
18.5 62 127 FT0102185127
18.75 62 127 FT0102187127
19 62 127 FT0102190127
19.25 66 131 FT0102192131
19.5 66 131 FT0102195131
19.75 66 131 FT0102197131
20 66 131 FT0102200131
