ISO
　　

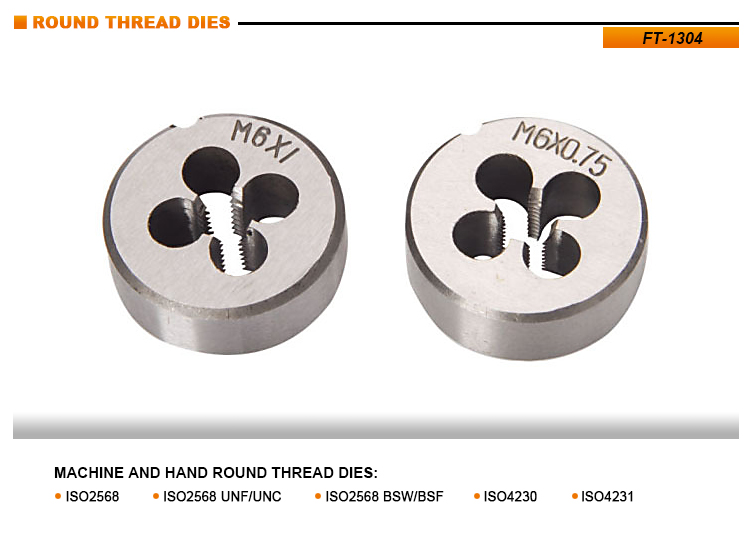

  ■ISO2568   MACHINE AND HAND ROUND THREAD DIES—High Speed Steel or Alloy Tool Steel
Size Outside Item No. (HSS) Item No. (9CrSi)
M1x0.2 16x5mm FT1304001001 FT1304002001
M1x0.25 16x5mm FT1304001002 FT1304002002
M1.1x0.2 16x5mm FT1304001003 FT1304002003
M1.1x0.25 16x5mm FT1304001004 FT1304002004
M1.2x0.2 16x5mm FT1304001005 FT1304002005
M1.2x0.25 16x5mm FT1304001006 FT1304002006
M1.4x0.2 16x5mm FT1304001007 FT1304002007
M1.4x0.3 16x5mm FT1304001008 FT1304002008
M1.6x0.2 16x5mm FT1304001009 FT1304002009
M1.6x0.35 16x5mm FT1304001010 FT1304002010
M1.8x0.2 16x5mm FT1304001011 FT1304002011
M1.8x0.35 16x5mm FT1304001012 FT1304002012
M2x0.25 16x5mm FT1304001013 FT1304002013
M2x0.4 16x5mm FT1304001014 FT1304002014
M2.2x0.25 16x5mm FT1304001015 FT1304002015
M2.2x0.45 16x5mm FT1304001016 FT1304002016
M2.5x0.35 16x5mm FT1304001017 FT1304002017
M2.5x0.45 16x5mm FT1304001018 FT1304002018
M3x0.35 20x5mm FT1304001019 FT1304002019
M3x0.5 20x5mm FT1304001020 FT1304002020
M3.5x0.35 20x5mm FT1304001021 FT1304002021
M3.5x0.6 20x5mm FT1304001022 FT1304002022
M4x0.5 20x5mm FT1304001023 FT1304002023
M4x0.7 20x5mm FT1304001024 FT1304002024
M4.5x0.5 20x5mm FT1304001025 FT1304002025
M4.5x0.75 20x7mm FT1304001026 FT1304002026
M5x0.5 20x5mm FT1304001027 FT1304002027
M5x0.8 20x7mm FT1304001028 FT1304002028
M5.5x0.5 20x5mm FT1304001029 FT1304002029
M6x0.75 20x7mm FT1304001030 FT1304002030
M6x1 20x7mm FT1304001031 FT1304002031
M7x0.75 25x9mm FT1304001032 FT1304002032
M7x1 25x9mm FT1304001033 FT1304002033
M8x0.75 25x9mm FT1304001034 FT1304002034
M8x1 25x9mm FT1304001035 FT1304002035
M8x1.25 25x9mm FT1304001036 FT1304002036
M9x0.75 25x9mm FT1304001037 FT1304002037
M9x1 25x9mm FT1304001038 FT1304002038
M9x1.25 25x9mm FT1304001039 FT1304002039
M10x0.75 30x11mm FT1304001040 FT1304002040
M10x1 30x11mm FT1304001041 FT1304002041
M10x1.25 30x11mm FT1304001042 FT1304002042
M10x1.5 30x11mm FT1304001043 FT1304002043
M11x0.75 30x11mm FT1304001044 FT1304002044
M11x1 30x11mm FT1304001045 FT1304002045
M11x1.5 30x11mm FT1304001046 FT1304002046
M12x1 38x10mm FT1304001047 FT1304002047
M12x1.25 38x10mm FT1304001048 FT1304002048
M12x1.5 38x10mm FT1304001049 FT1304002049
M12x1.75 38x14mm FT1304001050 FT1304002050
M14x1 38x10mm FT1304001051 FT1304002051
M14x1.25 38x10mm FT1304001052 FT1304002052
M14x1.5 38x10mm FT1304001053 FT1304002053
M14x2 38x14mm FT1304001054 FT1304002054
M15x1.5 38x10mm FT1304001055 FT1304002055
M16x1 45x14mm FT1304001056 FT1304002056
M16x1.5 45x14mm FT1304001057 FT1304002057
M16x2 45x18mm FT1304001058 FT1304002058
M17x1.5 45x14mm FT1304001059 FT1304002059
M18x1 45x14mm FT1304001060 FT1304002060
M18x1.5 45x14mm FT1304001061 FT1304002061
M18x2 45x14mm FT1304001062 FT1304002062
M18x2.5 45x18mm FT1304001063 FT1304002063
M20x1 45x14mm FT1304001064 FT1304002064
M20x1.5 45x14mm FT1304001065 FT1304002065
M20x2 45x14mm FT1304001066 FT1304002066
M20x2.5 45x18mm FT1304001067 FT1304002067
M22x1 55x16mm FT1304001068 FT1304002068
M22x1.5 55x16mm FT1304001069 FT1304002069
M22x2 55x16mm FT1304001070 FT1304002070
M22x2.5 55x22mm FT1304001071 FT1304002071
M24x1 55x16mm FT1304001072 FT1304002072
M24x1.5 55x16mm FT1304001073 FT1304002073
M24x2 55x16mm FT1304001074 FT1304002074
M24x3 55x22mm FT1304001075 FT1304002075
M25x1.5 55x16mm FT1304001076 FT1304002076
M25x2 55x16mm FT1304001077 FT1304002077
M27x1 65x18mm FT1304001078 FT1304002078
M27x1.5 65x18mm FT1304001079 FT1304002079
M27x2 65x18mm FT1304001080 FT1304002080
M27x3 65x25mm FT1304001081 FT1304002081
M28x1 65x18mm FT1304001082 FT1304002082
M28x1.5 65x18mm FT1304001083 FT1304002083
M28x2 65x18mm FT1304001084 FT1304002084
M30x1 65x18mm FT1304001085 FT1304002085
M30x1.5 65x18mm FT1304001086 FT1304002086
M30x2 65x18mm FT1304001087 FT1304002087
M30x3 65x25mm FT1304001088 FT1304002088
M30x3.5 65x25mm FT1304001089 FT1304002089
M32x1.5 65x18mm FT1304001090 FT1304002090
M32x2 65x18mm FT1304001091 FT1304002091
M33x1.5 65x18mm FT1304001092 FT1304002092
M33x2 65x18mm FT1304001093 FT1304002093
M33x3 65x25mm FT1304001094 FT1304002094
M33x3.5 65x25mm FT1304001095 FT1304002095
M35x1.5 65x18mm FT1304001096 FT1304002096
M36x1.5 65x18mm FT1304001097 FT1304002097
M36x2 65x18mm FT1304001098 FT1304002098
M36x3 65x25mm FT1304001099 FT1304002099
M36x4 65x25mm FT1304001100 FT1304002100
M39x1.5 75x20mm FT1304001101 FT1304002101
M39x2 75x20mm FT1304001102 FT1304002102
M39x3 75x30mm FT1304001103 FT1304002103
M39x4 75x30mm FT1304001104 FT1304002104
M40x1.5 75x20mm FT1304001105 FT1304002105
M40x2 75x20mm FT1304001106 FT1304002106
M40x3 75x30mm FT1304001107 FT1304002107
M42x1.5 75x20mm FT1304001108 FT1304002108
M42x2 75x20mm FT1304001109 FT1304002109
M42x3 75x30mm FT1304001110 FT1304002110
M42x4 75x30mm FT1304001111 FT1304002111
M42x4.5 75x30mm FT1304001112 FT1304002112
M45x1.5 90x22mm FT1304001113 FT1304002113
M45x2 90x22mm FT1304001114 FT1304002114
M45x3 90x36mm FT1304001115 FT1304002115
M45x4 90x36mm FT1304001116 FT1304002116
M45x4.5 90x36mm FT1304001117 FT1304002117
M48x1.5 90x22mm FT1304001118 FT1304002118
M48x2 90x22mm FT1304001119 FT1304002119
M48x3 90x36mm FT1304001120 FT1304002120
M48x4 90x36mm FT1304001121 FT1304002121
M48x5 90x36mm FT1304001122 FT1304002122
M50x1.5 90x22mm FT1304001123 FT1304002123
M50x2 90x22mm FT1304001124 FT1304002124
M50x3 90x36mm FT1304001125 FT1304002125
M52x1.5 90x22mm FT1304001126 FT1304002126
M52x2 90x22mm FT1304001127 FT1304002127
M52x3 90x36mm FT1304001128 FT1304002128
M52x4 90x36mm FT1304001129 FT1304002129
M52x5 90x36mm FT1304001130 FT1304002130
M55x1.5 105x22mm FT1304001131 FT1304002131
M55x2 105x22mm FT1304001132 FT1304002132
M55x3 105x36mm FT1304001133 FT1304002133
M55x4 105x36mm FT1304001134 FT1304002134
M56x1.5 105x22mm FT1304001135 FT1304002135
M56x2 105x22mm FT1304001136 FT1304002136
M56x3 105x36mm FT1304001137 FT1304002137
M56x4 105x36mm FT1304001138 FT1304002138
M56x5.5 105x36mm FT1304001139 FT1304002139
M60x5.5 105x36mm FT1304001140 FT1304002140
M64x6 120x36mm FT1304001141 FT1304002141
M68x6 120x36mm FT1304001142 FT1304002142
　 　 　 　
  ■ISO2568 UNF/UNC
 MACHINE AND HAND ROUND THREAD DIES—High Speed Steel or Alloy Tool Steel
　 　 　
Size Outside Item No. (HSS) Item No. (9CrSi)
No.0-80UNF 16x5mm FT1304003001 FT1304004001
No.1-64UNC 16x5mm FT1304003002 FT1304004002
No.1-72UNF 16x5mm FT1304003003 FT1304004003
No.2-56UNC 16x5mm FT1304003004 FT1304004004
No.2-64UNF 16x5mm FT1304003005 FT1304004005
No.3-48UNC 16x5mm FT1304003006 FT1304004006
No.3-56UNF 16x5mm FT1304003007 FT1304004007
No.4-40UNC 20x5mm FT1304003008 FT1304004008
No.4-48UNF 20x5mm FT1304003009 FT1304004009
No.5-40UNC 20x5mm FT1304003010 FT1304004010
No.5-44UNF 20x5mm FT1304003011 FT1304004011
No.6-32UNC 20x7mm FT1304003012 FT1304004012
No.6-40UNF 20x5mm FT1304003013 FT1304004013
No.8-32UNC 20x7mm FT1304003014 FT1304004014
No.8-36UNF 20x7mm FT1304003015 FT1304004015
No.10-24UNC 20x7mm FT1304003016 FT1304004016
No.10-32UNF 20x7mm FT1304003017 FT1304004017
No.12-24UNC 20x7mm FT1304003018 FT1304004018
No.12-28UNF 20x7mm FT1304003019 FT1304004019
1/4-20UNC 20x7mm FT1304003020 FT1304004020
1/4-28UNF 20x7mm FT1304003021 FT1304004021
5/16-18UNC 25x9mm FT1304003022 FT1304004022
5/16-24UNF 25x9mm FT1304003023 FT1304004023
3/8-16UNC 30x11mm FT1304003024 FT1304004024
3/8-24UNF 30x11mm FT1304003025 FT1304004025
7/16-14UNC 30x11mm FT1304003026 FT1304004026
7/16-20UNF 30x11mm FT1304003027 FT1304004027
1/2-13UNC 38x14mm FT1304003028 FT1304004028
1/2-20UNF 38x10mm FT1304003029 FT1304004029
9/16-12UNC 38x14mm FT1304003030 FT1304004030
9/16-18UNF 38x10mm FT1304003031 FT1304004031
5/8-11UNC 45x18mm FT1304003032 FT1304004032
5/8-18UNF 45x14mm FT1304003033 FT1304004033
3/4-10UNC 45x18mm FT1304003034 FT1304004034
3/4-16UNF 45x14mm FT1304003035 FT1304004035
7/8-9UNC 55x22mm FT1304003036 FT1304004036
7/8-14UNF 55x16mm FT1304003037 FT1304004037
1-11-8UNC 55x22mm FT1304003038 FT1304004038
1-11-12UNF 55x16mm FT1304003039 FT1304004039
1-1/8-7UNC 65x25mm FT1304003040 FT1304004040
1-1/2-12UNF 65x18mm FT1304003041 FT1304004041
1-1/4-7UNC 65x25mm FT1304003042 FT1304004042
1-1/4-12UNF 65x18mm FT1304003043 FT1304004043
1-3/8-6UNC 65x25mm FT1304003044 FT1304004044
1-3/8-12UNF 65x18mm FT1304003045 FT1304004045
1-1/2-6UNC 75x30mm FT1304003046 FT1304004046
1-1/2-12UNF 75x20mm FT1304003047 FT1304004047
1-3/4-5UNC 90x36mm FT1304003048 FT1304004048
2-4-1/2UNC 90x36mm FT1304003049 FT1304004049
2-1/4-4-1/2UNC 105x36mm FT1304003050 FT1304004050
2-1/2-4UNC 120x36mm FT1304003051 FT1304004051
2-3/4-4UNC 120x36mm FT1304003052 FT1304004052
  ■ISO2568 BSW/BSF
 MACHINE AND HAND ROUND THREAD DIES—High Speed Steel or Alloy Tool Steel
　
Size Outside Item No. (HSS) Item No. (9CrSi)
1/8-40BSW 20x5mm FT1304005001 FT1304006001
3/16-24BSW 20x7mm FT1304005002 FT1304006002
3/16-32BSF 20x7mm FT1304005003 FT1304006003
7/32-28BSF 20x7mm FT1304005004 FT1304006004
1/4-20BSW 25x9mm FT1304005005 FT1304006005
1/4-26BSF 25x9mm FT1304005006 FT1304006006
9/32-26BSF 25x9mm FT1304005007 FT1304006007
5/16-18BSW 25x9mm FT1304005008 FT1304006008
5/16-22BSF 25x9mm FT1304005009 FT1304006009
3/8-16BSW 30x11mm FT1304005010 FT13040060010
3/8-20BSF 30x11mm FT1304005011 FT1304006011
7/16-14BSW 30x11mm FT1304005012 FT1304006012
7/16-18BSF 30x11mm FT1304005013 FT1304006013
1/2-12BSW 38x14mm FT1304005014 FT1304006014
1/2-16BSF 38x10mm FT1304005015 FT1304006015
9/16-12BSW 38x14mm FT1304005016 FT1304006016
9/16-16BSF 38x10mm FT1304005017 FT1304006017
5/8-11BSW 45x18mm FT1304005018 FT1304006018
5/8-14BSF 45x14mm FT1304005019 FT1304006019
11/16-11BSW 45x18mm FT1304005020 FT1304006020
11/16-14BSF 45x14mm FT1304005021 FT1304006021
3/4-10BSW 45x18mm FT1304005022 FT1304006022
3/4-12BSF 45x14mm FT1304005023 FT1304006023
7/8-9BSW 55x22mm FT1304005024 FT1304006024
7/8-11BSF 55x22mm FT1304005025 FT1304006025
1-8BSW 55x22mm FT1304005026 FT1304006026
1-10BSF 55x22mm FT1304005027 FT1304006027
1-1/8-7BSW 65x25mm FT1304005028 FT1304006028
1-1/8-9BSF 65x25mm FT1304005029 FT1304006029
1-1/4-7BSW 65x25mm FT1304005030 FT1304006030
1-1/4-9BSF 65x25mm FT1304005031 FT1304006031
1-1/2-6BSW 75x30mm FT1304005032 FT1304006032
1-1/2-8BSF 75x30mm FT1304005033 FT1304006033
1-5/8-8BSW 75x30mm FT1304005034 FT1304006034
1-3/4-5BSW 90x36mm FT1304005035 FT1304006035
1-3/4-7BSF 90x36mm FT1304005036 FT1304006036
2-4-1/2BSW 90x36mm FT1304005037 FT1304006037
2-7BSF 90x36mm FT1304005038 FT1304006038
2-1/4-4BSW 105x36mm FT1304005039 FT1304006039
2-1/4-6BSF 105x36mm FT1304005040 FT1304006040
2-1/2-4BSW 120x36mm FT1304005041 FT1304006041
2-1/2-6BSF 120x36mm FT1304005042 FT1304006042
2-3/4-3-1/2BSW 120x36mm FT1304005043 FT1304006043
2-3/4-6BSF 120x36mm FT1304005044 FT1304006044
  ■ISO4230  MACHINE AND HAND ROUND THREAD DIES—High Speed Steel or Alloy Tool Steel
Size Outside Item No. (HSS) Item No. (9CrSi)
R-1/16 30x11mm FT1304007001 FT1304008001
R-1/8 30x11mm FT1304007002 FT1304008002
R-1/4 38x14mm FT1304007003 FT1304008003
R-3/8 45x18mm FT1304007004 FT1304008004
R-1/2 55x22mm FT1304007005 FT1304008005
R-3/4 55x22mm FT1304007006 FT1304008006
R1 65x25mm FT1304007007 FT1304008007
R1-1/4 75x30mm FT1304007008 FT1304008008
R1-1/2 90x36mm FT1304007009 FT1304008009
R2 105x36mm FT1304007010 FT1304008010
  ■ISO4231   MACHINE AND HAND ROUND THREAD DIES—High Speed Steel or Alloy Tool Steel
Size Outside Item No. (HSS) Item No. (9CrSi)
G1/16 25x9mm FT1304009001 FT1304010001
G1/8 30x11mm FT1304009002 FT1304010002
G1/4 38x10mm FT1304009003 FT1304010003
G3/8 45x14mm FT1304009004 FT1304010004
G1/2 45x14mm FT1304009005 FT1304010005
G5/8 55x16mm FT1304009006 FT1304010006
G3/4 55x16mm FT1304009007 FT1304010007
G7/8 65x18mm FT1304009008 FT1304010008
G1 65x18mm FT1304009009 FT1304010009
G1-1/4 75x20mm FT1304009010 FT1304010010
G1-1/2 90x22mm FT1304009011 FT1304010011
G1-3/4 105x22mm FT1304009012 FT1304010012
, G2 105x22mm FT1304009013 FT1304010013
G2-1/4 105x22mm FT1304009014 FT1304010014
【Print】 【Back】【Top】
