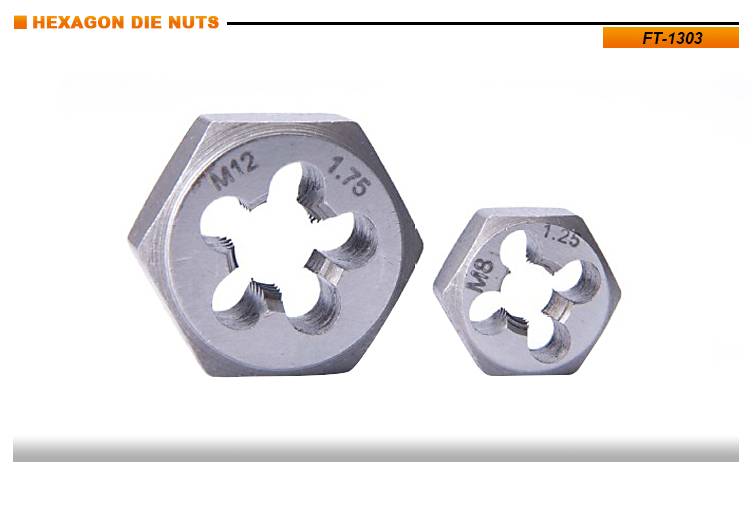

DIN382 Hexagon Die Nuts
　　
  ■DIN382 Hexagon Die Nuts—High Speed Steel
Size Outside Item No.
M3×0.5 19×5mm FT1303000001
M3.5×0.6 19×5mm FT1303000002
M4×0.7 19×5mm FT1303000003
M4.5×0.75 19×7mm FT1303000004
M5×0.8 19×7mm FT1303000005
M6×1 19×7mm FT1303000006
M7×1 22×9mm FT1303000007
M8×1.25 22×9mm FT1303000008
M9×1.25 22×9mm FT1303000009
M10×1.5 27×11mm FT1303000010
M11×1.5 27×11mm FT1303000011
M12×1.75 36×14mm FT1303000012
M14×2 36×14mm FT1303000013
M16×2 41×18mm FT1303000014
M18×2.5 41×18mm FT1303000015
M20×2.5 41×18mm FT1303000016
M22×2.5 50×22mm FT1303000017
M24×3 50×22mm FT1303000018
M27×3 60×25mm FT1303000019
M30×3.5 60×25mm FT1303000020
M33×3.5 60×25mm FT1303000021
M36×4 60×25mm FT1303000022
M39×4 70×30mm FT1303000023
M42×4.5 70×30mm FT1303000024
M45×4.5 85×36mm FT1303000025
M48×5 85×36mm FT1303000026
M52×5 85×36mm FT1303000027
M3×0.35 19×5mm FT1303000028
M4×0.5 19×5mm FT1303000029
M5×0.5 19×5mm FT1303000030
M6×0.75 19×5mm FT1303000031
M7×0.75 22×9mm FT1303000032
M8×0.75 22×9mm FT1303000033
M8×1 22×9mm FT1303000034
M9×1 22×9mm FT1303000035
M10×1 27×11mm FT1303000036
M11×1 27×11mm FT1303000037
M12×1 36×10mm FT1303000038
M12×1.25 36×10mm FT1303000039
M12×1.5 36×10mm FT1303000040
M14×1 36×10mm FT1303000041
M14×1.25 36×10mm FT1303000042
M14×1.5 36×10mm FT1303000043
M16×1.5 41×14mm FT1303000044
M18×1.5 41×14mm FT1303000045
M18×2 41×14mm FT1303000046
M20×1.5 41×14mm FT1303000047
M20×2 41×14mm FT1303000048
M22×1.5 50×16mm FT1303000049
M22×2 50×16mm FT1303000050
M24×1.5 50×16mm FT1303000051
M24×2 50×16mm FT1303000052
M26×1.5 60×18mm FT1303000053
M27×1.5 60×18mm FT1303000054
M27×2 60×18mm FT1303000055
M28×1.5 60×18mm FT1303000056
M30×1.5 60×18mm FT1303000057
M30×2 60×18mm FT1303000058
M32×1.5 60×18mm FT1303000059
M33×1.5 60×18mm FT1303000060
M33×2 60×18mm FT1303000061
M35×1.5 60×18mm FT1303000062
M36×1.5 60×18mm FT1303000063
M36×2 60×18mm FT1303000064
M36×3 60×25mm FT1303000065
M38×1.5 70×20mm FT1303000066
M39×1.5 70×20mm FT1303000067
M39×2 70×20mm FT1303000068
M39×3 70×20mm FT1303000069
M40×1.5 70×20mm FT1303000070
M40×2 70×20mm FT1303000071
M42×1.5 70×20mm FT1303000072
M42×2 70×20mm FT1303000073
M42×3 70×30mm FT1303000074
M45×1.5 85×22mm FT1303000075
M45×2 85×22mm FT1303000076
M45×3 85×36mm FT1303000077
M48×1.5 85×22mm FT1303000078
M48×2 85×22mm FT1303000079
M48×3 85×36mm FT1303000080
M50×1.5 85×22mm FT1303000081
M52×1.5 85×22mm FT1303000082
M52×2 85×22mm FT1303000083
M53×3 85×36mm FT1303000084
Size Outside Item No.
1/8-40BSW 19×5 FT1303000085
3/16-24BSW 19×7 FT1303000086
1/4-20BSW 19×7 FT1303000087
5/16-18BSW 22×9 FT1303000088
3/8-16BSW 27×11 FT1303000089
7/16-14BSW 27×11 FT1303000090
1/2-12BSW 36×14 FT1303000090
9/16-12BSW 36×14 FT1303000092
5/8-11BSW 41×18 FT1303000093
3/4-10BSW 41×18 FT1303000094
7/8-9BSW 50×22 FT1303000095
1"-8BSW 50×22 FT1303000096
1-1/8-7BSW 60×25 FT1303000097
1-1/4-7BSW 60×25 FT1303000098
1-3/8-6BSW 60×25 FT1303000099
1-1/2-6BSW 70×30 FT1303000100
1-5/8-5BSW 70×30 FT1303000101
1-3/4-5BSW 85×36 FT1303000102
1-7/8-4-1/2BSW 85×36 FT1303000103
2"-4-1/2BSW 85×36 FT1303000104
Size Outside Item No.
G1/8-28 27×11 FT1303000105
G1/4-19 36×10 FT1303000106
G3/8-19 41×14 FT1303000107
G1/2-14 41×14 FT1303000108
G5/8-14 50×16 FT1303000109
G3/4-14 50×16 FT1303000110
G7/8-14 60×18 FT1303000111
G1"-11 60×18 FT1303000112
G1-1/8-11 70×20 FT1303000113
G1-1/4-11 70×20 FT1303000114
G1-3/8-11 85×22 FT1303000115
G1-1/2-11 85×22 FT1303000116
G1-3/4-11 100×22 FT1303000117
G2"-11 100×22 FT1303000118
