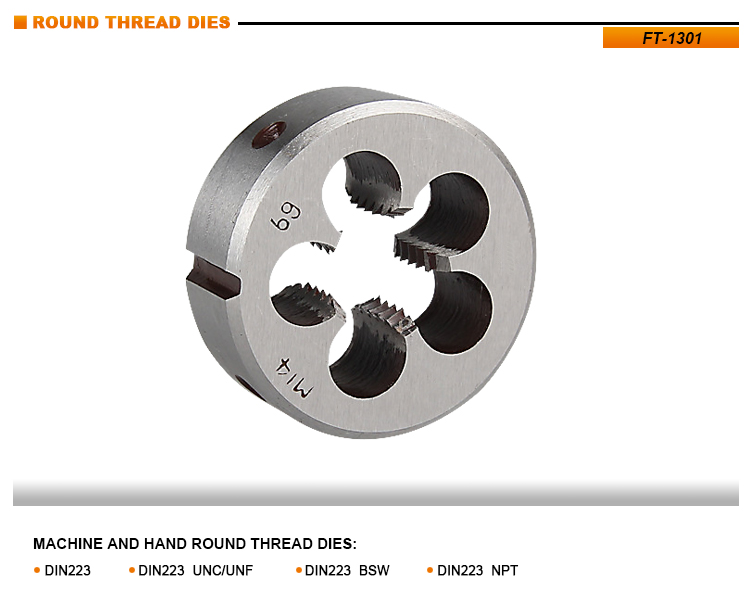

DIN223
　　
  ■DIN223  High Speed Steel or Alloy Tool Steel
Size Outside Item No. (HSS) Item No. (GCr-15)
M1x0.2 16x5 FT1301001001 FT1301002001
M1x0.25 16x5 FT1301001002 FT1301002002
M1.1x0.2 16x5 FT1301001003 FT1301002003
M1.1x0.25 16x5 FT1301001004 FT1301002004
M1.2x0.2 16x5 FT1301001005 FT1301002005
M1.2x0.25 16x5 FT1301001006 FT1301002006
M1.4x0.2 16x5 FT1301001007 FT1301002007
M1.4x0.25 16x5 FT1301001008 FT1301002008
M1.4x0.3 16x5 FT1301001009 FT1301002009
M1.6x0.2 16x5 FT1301001010 FT1301002010
M1.6x0.25 16x5 FT1301001011 FT1301002011
M1.6x0.35 16x5 FT1301001012 FT1301002012
M1.7x0.2 16x5 FT1301001013 FT1301002013
M1.7x0.25 16x5 FT1301001014 FT1301002014
M1.7x0.35 16x5 FT1301001015 FT1301002015
M1.8x0.2 16x5 FT1301001016 FT1301002016
M1.8x0.25 16x5 FT1301001017 FT1301002017
M1.8x0.35 16x5 FT1301001018 FT1301002018
M2x0.2 16x5 FT1301001019 FT1301002019
M2x0.25 16x5 FT1301001020 FT1301002020
M2x0.35 16x5 FT1301001021 FT1301002021
M2x0.4 16x5 FT1301001022 FT1301002022
M2.2x0.25 16x5 FT1301001023 FT1301002023
M2.2x0.35 16x5 FT1301001024 FT1301002024
M2.2x0.45 16x5 FT1301001025 FT1301002025
M2.3x0.25 16x5 FT1301001026 FT1301002026
M2.3x0.35 16x5 FT1301001027 FT1301002027
M2.3x0.4 16x5 FT1301001028 FT1301002028
M2.5x0.25 16x5 FT1301001029 FT1301002029
M2.5x0.35 16x5 FT1301001030 FT1301002030
M2.5x0.45 16x5 FT1301001031 FT1301002031
M2.6x0.25 16x5 FT1301001032 FT1301002032
M2.6x0.35 16x5 FT1301001033 FT1301002033
M2.6x0.45 16x5 FT1301001034 FT1301002034
M3x0.25 20x5 FT1301001035 FT1301002035
M3x0.35 20x5 FT1301001036 FT1301002036
M3x0.5 20x5 FT1301001037 FT1301002037
M3.5x0.25 20x5 FT1301001038 FT1301002038
M3.5x0.35 20x5 FT1301001039 FT1301002039
M3.5x0.5 20x5 FT1301001040 FT1301002040
M3.5x0.6 20x5 FT1301001041 FT1301002041
M4x0.35 20x5 FT1301001042 FT1301002042
M4x0.5 20x5 FT1301001043 FT1301002043
M4x0.7 20x5 FT1301001044 FT1301002044
M4.5x0.35 20x5 FT1301001045 FT1301002045
M4.5x0.5 20x5 FT1301001046 FT1301002046
M4.5x0.75 20x7 FT1301001047 FT1301002047
M5x0.35 20x5 FT1301001048 FT1301002048
M5x0.5 20x5 FT1301001049 FT1301002049
M5x0.75 20x7 FT1301001050 FT1301002050
M5x0.8 20x7 FT1301001051 FT1301002051
M5.5x0.35 20x5 FT1301001052 FT1301002052
M5.5x0.5 20x5 FT1301001053 FT1301002053
M5.5x0.75 20x7 FT1301001054 FT1301002054
M5.5x0.9 20x7 FT1301001055 FT1301002055
M6x0.35 20x5 FT1301001056 FT1301002056
M6x0.5 20x5 FT1301001057 FT1301002057
M6x0.75 20x7 FT1301001058 FT1301002058
M6x1 20x7 FT1301001059 FT1301002059
M7x0.5 25x9 FT1301001060 FT1301002060
M7x0.75 25x9 FT1301001061 FT1301002061
M7x1 25x9 FT1301001062 FT1301002062
M8x0.5 25x9 FT1301001063 FT1301002063
M8x0.75 25x9 FT1301001064 FT1301002064
M8x1 25x9 FT1301001065 FT1301002065
M8x1.25 25x9 FT1301001066 FT1301002066
M9x0.5 25x9 FT1301001067 FT1301002067
M9x0.75 25x9 FT1301001068 FT1301002068
M9x1 25x9 FT1301001069 FT1301002069
M9x1.25 25x9 FT1301001070 FT1301002070
M10x0.5 30x11 FT1301001071 FT1301002071
M10x0.75 30x11 FT1301001072 FT1301002072
M10x1 30x11 FT1301001073 FT1301002073
M10x1.25 30x11 FT1301001074 FT1301002074
M10x1.5 30x11 FT1301001075 FT1301002075
M11x0.5 30x11 FT1301001076 FT1301002076
M11x0.75 30x11 FT1301001077 FT1301002077
M11x1 30x11 FT1301001078 FT1301002078
M11x1.5 30x11 FT1301001079 FT1301002079
M12x0.5 38x10 FT1301001080 FT1301002080
M12x0.75 38x10 FT1301001081 FT1301002081
M12x1 38x10 FT1301001082 FT1301002082
M12x1.25 38x10 FT1301001083 FT1301002083
M12x1.5 38x10 FT1301001084 FT1301002084
M12x1.75 38x14 FT1301001085 FT1301002085
M13x0.5 38x10 FT1301001086 FT1301002086
M13x0.75 38x10 FT1301001087 FT1301002087
M13x1 38x10 FT1301001088 FT1301002088
M13x1.5 38x10 FT1301001089 FT1301002089
M14x0.5 38x10 FT1301001090 FT1301002090
M14x0.75 38x10 FT1301001091 FT1301002091
M14x1 38x10 FT1301001092 FT1301002092
M14x1.25 38x10 FT1301001093 FT1301002093
M14x1.5 38x14 FT1301001094 FT1301002094
M14x2 38x10 FT1301001095 FT1301002095
M15x0.5 38x10 FT1301001096 FT1301002096
M15x0.75 38x10 FT1301001097 FT1301002097
M15x1 38x10 FT1301001098 FT1301002098
M15x1.5 38x10 FT1301001099 FT1301002099
M16x0.5 45x14 FT1301001100 FT1301002100
M16x0.75 45x14 FT1301001101 FT1301002101
M16x1 45x14 FT1301001102 FT1301002102
M16x1.25 45x14 FT1301001103 FT1301002103
M16x1.5 45x14 FT1301001104 FT1301002104
M16x2 45x14 FT1301001105 FT1301002105
M17x0.5 45x14 FT1301001106 FT1301002106
M17x0.75 45x14 FT1301001107 FT1301002107
M17x1 45x14 FT1301001108 FT1301002108
M17x1.5 45x14 FT1301001109 FT1301002109
M18x0.5 45x14 FT1301001110 FT1301002110
M18x0.75 45x14 FT1301001111 FT1301002111
M18x1 45x14 FT1301001112 FT1301002112
M18x1.25 45x14 FT1301001113 FT1301002113
M18x1.5 45x14 FT1301001114 FT1301002114
M18x2 45x14 FT1301001115 FT1301002115
M18x2.5 45x18 FT1301001116 FT1301002116
M19x0.5 45x14 FT1301001117 FT1301002117
M19x0.75 45x14 FT1301001118 FT1301002118
M19x1 45x14 FT1301001119 FT1301002119
M19x1.5 45x14 FT1301001120 FT1301002120
M19x2 45x14 FT1301001121 FT1301002121
M20x0.5 45x14 FT1301001122 FT1301002122
M20x0.75 45x14 FT1301001123 FT1301002123
M20x1 45x14 FT1301001124 FT1301002124
M20x1.25 45x14 FT1301001125 FT1301002125
M20x1.5 45x14 FT1301001126 FT1301002126
M20x2 45x14 FT1301001127 FT1301002127
M20x2.5 45x18 FT1301001128 FT1301002128
M21x0.5 45x14 FT1301001129 FT1301002129
M21x0.75 45x14 FT1301001130 FT1301002130
M21x1 45x14 FT1301001131 FT1301002131
M21x1.5 45x14 FT1301001132 FT1301002132
M21x2 45x14 FT1301001133 FT1301002133
M22x0.5 55x16 FT1301001134 FT1301002134
M22x0.75 55x16 FT1301001135 FT1301002135
M22x1 55x16 FT1301001136 FT1301002136
M22x1.5 55x16 FT1301001137 FT1301002137
M22x2 55x16 FT1301001138 FT1301002138
M22x2.5 55x22 FT1301001139 FT1301002139
M23x0.5 55x16 FT1301001140 FT1301002140
M23x0.75 55x16 FT1301001141 FT1301002141
M23x1 55x, 16 FT1301001142 FT1301002142
M23x1.5 55x16 FT1301001143 FT1301002143
M23x2 55x16 FT1301001144 FT1301002144
M24x0.5 55x16 FT1301001145 FT1301002145
M24x0.75 55x16 FT1301001146 FT1301002146
M24x1 55x16 FT1301001147 FT1301002147
M24x1.5 55x16 FT1301001148 FT1301002148
M24x2 55x16 FT1301001149 FT1301002149
M24x3 55x22 FT1301001150 FT1301002150
M25x0.5 55x16 FT1301001151 FT1301002151
M25x0.75 55x16 FT1301001152 FT1301002152
M25x1 55x16 FT1301001153 FT1301002153
M25x1.5 55x16 FT1301001154 FT1301002154
M25x2 55x16 FT1301001155 FT1301002155
M26x0.5 55x16 FT1301001156 FT1301002156
M26x0.75 55x16 FT1301001157 FT1301002157
M26x1 55x16 FT1301001158 FT1301002158
M26x1.5 55x16 FT1301001159 FT1301002159
M26x2 55x16 FT1301001160 FT1301002160
M27x0.5 65x18 FT1301001161 FT1301002161
M27x0.75 65x18 FT1301001162 FT1301002162
M27x1 65x18 FT1301001163 FT1301002163
M27x1.5 65x18 FT1301001164 FT1301002164
M27x2 65x18 FT1301001165 FT1301002165
M27x3 65x25 FT1301001166 FT1301002166
M28x0.5 65x18 FT1301001167 FT1301002167
M28x0.75 65x18 FT1301001168 FT1301002168
M28x1 65x18 FT1301001169 FT1301002169
M28x1.5 65x18 FT1301001170 FT1301002170
M28x2 65x18 FT1301001171 FT1301002171
M30x0.5 65x18 FT1301001172 FT1301002172
M30x0.75 65x18 FT1301001173 FT1301002173
M30x1 65x18 FT1301001174 FT1301002174
M30x1.5 65x18 FT1301001175 FT1301002175
M30x2 65x18 FT1301001176 FT1301002176
M30x3 65x25 FT1301001177 FT1301002177
M30x3.5 65x25 FT1301001178 FT1301002178
M32x1 65x18 FT1301001179 FT1301002179
M32x1.5 65x18 FT1301001180 FT1301002180
M32x2 65x18 FT1301001181 FT1301002181
M33x1 65x18 FT1301001182 FT1301002182
M33x1.5 65x18 FT1301001183 FT1301002183
M33x2 65x18 FT1301001184 FT1301002184
M33x3.5 65x25 FT1301001185 FT1301002185
M34x1 65x18 FT1301001186 FT1301002186
M34x1.5 65x18 FT1301001187 FT1301002187
M34x2 65x18 FT1301001188 FT1301002188
M34x3 65x25 FT1301001189 FT1301002189
M35x1 65x18 FT1301001190 FT1301002190
M35x1.5 65x18 FT1301001191 FT1301002191
M35x2 65x18 FT1301001192 FT1301002192
M35x3 65x25 FT1301001193 FT1301002193
M36x1 65x18 FT1301001194 FT1301002194
M36x1.5 65x18 FT1301001195 FT1301002195
M36x2 65x18 FT1301001196 FT1301002196
M36x3 65x25 FT1301001197 FT1301002197
M36x4 65x25 FT1301001198 FT1301002198
M38x1 75x20 FT1301001199 FT1301002199
M38x1.5 75x20 FT1301001200 FT1301002200
M38x2 75x20 FT1301001201 FT1301002201
M38x3 75x30 FT1301001202 FT1301002202
M39x1 75x20 FT1301001203 FT1301002203
M39x1.5 75x20 FT1301001204 FT1301002204
M39x2 75x20 FT1301001205 FT1301002205
M39x3 75x30 FT1301001206 FT1301002206
M39x4 75x30 FT1301001207 FT1301002207
M40x1 75x20 FT1301001208 FT1301002208
M40x1.5 75x20 FT1301001209 FT1301002209
M40x2 75x20 FT1301001210 FT1301002210
M40x3 75x30 FT1301001211 FT1301002211
M42x1 75x20 FT1301001212 FT1301002212
M42x1.5 75x20 FT1301001213 FT1301002213
M42x2 75x20 FT1301001214 FT1301002214
M42x3 75x30 FT1301001215 FT1301002215
M42x4.5 75x30 FT1301001216 FT1301002216
M45x1 90x22 FT1301001217 FT1301002217
M45x1.5 90x22 FT1301001218 FT1301002218
M45x2 90x22 FT1301001219 FT1301002219
M45x3 90x36 FT1301001220 FT1301002220
M45x4.5 90x36 FT1301001221 FT1301002221
M48x1 90x22 FT1301001222 FT1301002222
M48x1.5 90x22 FT1301001223 FT1301002223
M48x2 90x22 FT1301001224 FT1301002224
M48x3 90x36 FT1301001225 FT1301002225
M48x4 90x36 FT1301001226 FT1301002226
M48x5 90x36 FT1301001227 FT1301002227
M50x1 90x22 FT1301001228 FT1301002228
M50x1.5 90x22 FT1301001229 FT1301002229
M50x2 90x22 FT1301001230 FT1301002230
M50x3 90x36 FT1301001231 FT1301002231
M50x4 90x36 FT1301001232 FT1301002232
M52x1 90x22 FT1301001233 FT1301002233
M52x1.5 90x22 FT1301001234 FT1301002234
M52x2 90x22 FT1301001235 FT1301002235
M52x3 90x36 FT1301001236 FT1301002236
M52x4 90x36 FT1301001237 FT1301002237
M52x5 90x36 FT1301001238 FT1301002238
M55x2 105x22 FT1301001239 FT1301002239
M55x3 105x36 FT1301001240 FT1301002240
M55x4 105x36 FT1301001241 FT1301002241
M56x2 105x22 FT1301001242 FT1301002242
M56x3 105x36 FT1301001243 FT1301002243
M56x4 105x36 FT1301001244 FT1301002244
M56x5.5 105x36 FT1301001245 FT1301002245
M58x2 105x22 FT1301001246 FT1301002246
M58x3 105x36 FT1301001247 FT1301002247
M58x4 105x36 FT1301001248 FT1301002248
M60x2 105x22 FT1301001249 FT1301002249
M60x3 105x36 FT1301001250 FT1301002250
M60x4 105x36 FT1301001251 FT1301002251
M60x5.5 105x36 FT1301001252 FT1301002252
M62x2 105x22 FT1301001253 FT1301002253
M62x3 105x36 FT1301001254 FT1301002254
M62x4 105x36 FT1301001255 FT1301002255
M64x2 105x22 FT1301001256 FT1301002256
M64x3 105x36 FT1301001257 FT1301002257
M64x4 105x36 FT1301001258 FT1301002258
M64x6 105x36 FT1301001259 FT1301002259
M65x2 105x22 FT1301001260 FT1301002260
M65x3 105x36 FT1301001261 FT1301002261
M65x4 105x36 FT1301001262 FT1301002262
M68x2 105x22 FT1301001263 FT1301002263
M68x3 105x36 FT1301001264 FT1301002264
M68x4 105x36 FT1301001265 FT1301002265
M68x6 105x36 FT1301001266 FT1301002266
  ■DIN223 UNC/UNF  High Speed Steel or Alloy Tool Steel
Size Outside Item No. (HSS) Item No. (GCr-15)
No.0-80NF 16x5 FT1301003001 FT1301004001
No.1-64NC 16x5 FT1301003002 FT1301004002
No.1-72NF 16x5 FT1301003003 FT1301004003
No.2-56NC 16x5 FT1301003004 FT1301004004
No.2-64NF 16x5 FT1301003005 FT1301004005
No.3-48NC 16x5 FT1301003006 FT1301004006
No.3-56NF 16x5 FT1301003007 FT1301004007
No.4-40NC 20x5 FT1301003008 FT1301004008
No.4-48NF 20x5 FT1301003009 FT1301004009
No.5-40NC 20x5 FT1301003010 FT1301004010
No.5-44NF 20x5 FT1301003011 FT1301004011
No.6-32NC 20x5 FT1301003012 FT1301004012
No.6-40NF 20x5 FT1301003013 FT1301004013
No.8-32NC 20x5 FT1301003014 FT1301004014
No.8-36NF 20x5 FT1301003015 FT1301004015
No.10-24NC 20x7 FT1301003016 FT1301004016
No.10-32NF 20x7 FT1301003017 FT1301004017
No.12-24NC 20x7 FT1301003018 FT1301004018
No.12-28NF 20x7 FT1301003019 FT1301004019
1/4-20NC 20x7 FT1301003020 FT1301004020
1/4-28NF 20x7 FT1301003021 FT1301004021
5/16-18NC 25x9 FT1301003022 FT1301004022
5/16-24NF 25x9 FT1301003023 FT1301004023
3/8-16NC 30x11 FT1301003024 FT1301004024
3/8-24NF 30x11 FT1301003025 FT1301004025
7/16-14NC 30x11 FT1301003026 FT1301004026
7/16-20NF 30x11 FT1301003027 FT1301004027
1/2-13NC 38x14 FT1301003028 FT1301004028
1/2-20NF 38x10 FT1301003029 FT1301004029
9/16-12NC 38x14 FT1301003030 FT1301004030
9/16-18NF 38x10 FT1301003031 FT1301004031
5/8-11NC 45x18 FT1301003032 FT1301004032
5/8-18NF 45x14 FT1301003033 FT1301004033
3/4-10NC 45x18 FT1301003034 FT1301004034
3/4-16NF 45x14 FT1301003035 FT1301004035
7/8-9NC 55x22 FT1301003036 FT1301004036
7/8-14NF 55x16 FT1301003037 FT1301004037
1-8NC 55x22 FT1301003038 FT1301004038
1-12NF 55x16 FT1301003039 FT1301004039
1-14NS 55x16 FT1301003040 FT1301004040
1-1/8-7NC 65x25 FT1301003041 FT1301004041
1-1/8-12NF 65x18 FT1301003042 FT1301004042
1-1/4-7NC 65x25 FT1301003043 FT1301004043
1-1/4-12NF 65x18 FT1301003044 FT1301004044
1-3/8-6NC 65x25 FT1301003045 FT1301004045
1-3/8-12NF 65x18 FT1301003046 FT1301004046
1-1/2-6NC 75x30 FT1301003047 FT1301004047
1-1/2-12NF 75x20 FT1301003048 FT1301004048
1-3/4-5NC 90x36 FT1301003049 FT1301004049
2-4-1/2NC 90x36 FT1301003050 FT1301004050
  ■DIN223 BSW  High Speed Steel or Alloy Tool Steel
Size Outside Item No. (HSS) Item No. (GCr-15)
1/16-60BSW 16x5 FT1301005001 FT1301006001
3/32-48BSW 16x5 FT1301005002 FT1301006002
1/8-40BSW 20x5 FT1301005003 FT1301006003
5/32-32BSW 20x5 FT1301005004 FT1301006004
3/16-24BSW 20x7 FT1301005005 FT1301006005
7/32-24BSW 20x7 FT1301005006 FT1301006006
1/4-20BSW 20x7 FT1301005007 FT1301006007
5/16-18BSW 25x9 FT1301005008 FT1301006008
3/8-16BSW 30x11 FT1301005009 FT1301006009
7/16-14BSW 30x11 FT1301005010 FT1301006010
1/2-12BSW 38x14 FT1301005011 FT1301006011
9/16-12BSW 38x14 FT1301005012 FT1301006012
5/8-11BSW 45x18 FT1301005013 FT1301006013
3/4-10BSW 45x18 FT1301005014 FT1301006014
7/8-9BSW 55x22 FT1301005015 FT1301006015
1-8BSW 55x22 FT1301005016 FT1301006016
1-1/8-7BSW 65x25 FT1301005017 FT1301006017
1-1/4-7BSW 65x25 FT1301005018 FT1301006018
1-3/8-6BSW 65x25 FT1301005019 FT1301006019
1-1/2-6BSW 75x30 FT1301005020 FT1301006020
1-5/8-5BSW 75x30 FT1301005021 FT1301006021
1-3/4-5BSW 90x36 FT1301005022 FT1301006022
1-7/8-4-1/2BSW 90x36 FT1301005023 FT1301006023
2-4-1/2BSW 90x36 FT1301005024 FT1301006024
  ■DIN223 NPT  High Speed Steel or Alloy Tool Steel
Size Outside Item No. (HSS) Item No. (GCr-15)
NPT1/16-27 25x9 FT1301007001 FT1301008001
NPT1/8-27 30x11 FT1301007002 FT1301008002
NPT1/4-18 38x14 FT1301007003 FT1301008003
NPT3/8-18 45x14 FT1301007004 FT1301008004
NPT1/2-14 45x18 FT1301007005 FT1301008005
NPT3/4-14 55x22 FT1301007006 FT1301008006
NPT1-11-1/2 65x25 FT1301007007 FT1301008007
NPT1-1/4-11-1/2 75x26 FT1301007008 FT1301008008
NPT1-1/2-11-1/2 90x27 FT1301007009 FT1301008009
NPT2-11-1/2 105x28 FT1301007010 FT1301008010
【Print】 【Back】【Top】
