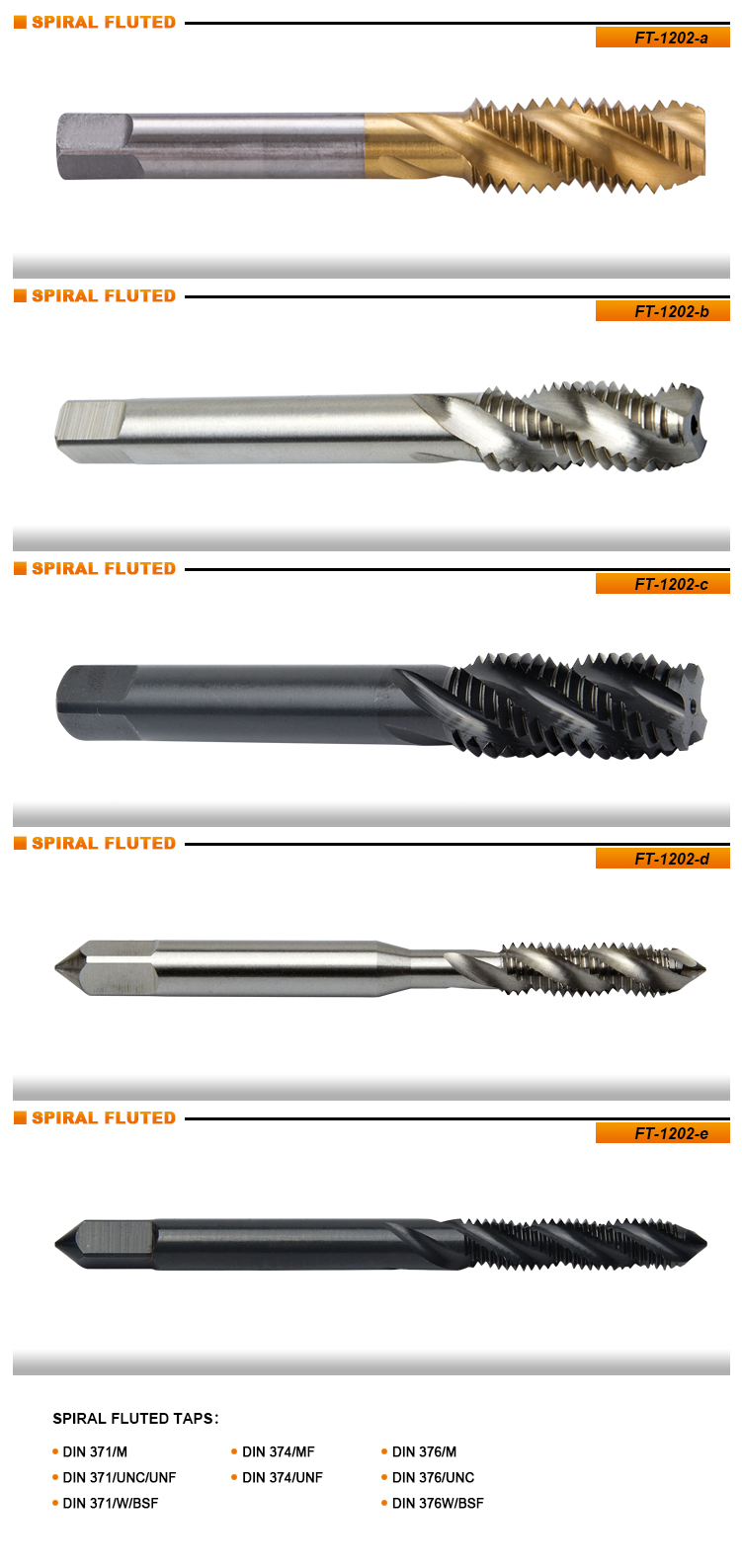

| ■DIN317/M SPIRAL FLUTED TAPS—High Speed Steel |
|
| ize |
Overall Length |
Thread Length |
Item No. |
| M2x0.4 |
45 |
8 |
FT1202000001 |
| M2.2x0.45 |
45 |
9 |
FT1202000002 |
| M2.5x0.45 |
50 |
9 |
FT1202000003 |
| M3x0.5 |
56 |
11 |
FT1202000004 |
| M3.5x0.6 |
56 |
13 |
FT1202000005 |
| M4x0.7 |
63 |
13 |
FT1202000006 |
| M5x0.8 |
70 |
16 |
FT1202000007 |
| M6x1 |
80 |
19 |
FT1202000008 |
| M7x1 |
80 |
19 |
FT1202000009 |
| M8x1.25 |
90 |
22 |
FT1202000010 |
| M9x1.25 |
90 |
22 |
FT1202000011 |
| M10x1.25 |
100 |
24 |
FT1202000012 |
| ■DIN371/W/BSF SPIRAL FLUTED TAPS—High Speed Steel |
|
| Size |
Overall Length |
Thread Length |
Item No. |
| W1/16-60 |
40 |
8 |
FT1202000013 |
| W3/32-48 |
50 |
9 |
FT1202000014 |
| W1/8-40 |
56 |
11 |
FT1202000015 |
| W5/32-32 |
63 |
13 |
FT1202000016 |
| W3/16-24 |
70 |
15 |
FT1202000017 |
| W7/32-24 |
80 |
16 |
FT1202000018 |
| W1/4-20 |
80 |
17 |
FT1202000019 |
| W5/16-18 |
90 |
20 |
FT1202000020 |
| W3/8-16 |
100 |
22 |
FT1202000021 |
| BSF3/16-32 |
70 |
15 |
FT1202000022 |
| BSF1/4-26 |
80 |
17 |
FT1202000023 |
| BSF5/16-22 |
90 |
20 |
FT1202000024 |
| BSF3/8-20 |
100 |
22 |
FT1202000025 |
| ■DIN371/UNC/UNF SPIRAL FLUTED TAPS—High Speed Steel |
|
| Size |
Overall Length |
Thread Length |
Item No. |
| No.1-64UNC |
40 |
8 |
FT1202000026 |
| No.2-56UNC |
45 |
9 |
FT1202000027 |
| No.3-48UNC |
50 |
9 |
FT1202000028 |
| No.4-40UNC |
56 |
11 |
FT1202000029 |
| No.5-40UNC |
56 |
11 |
FT1202000030 |
| No.6-32UNC |
56 |
12 |
FT1202000031 |
| No.8-32UNC |
63 |
13 |
FT1202000032 |
| No.10-24UNC |
70 |
15 |
FT1202000033 |
| No.12-24UNC |
80 |
16 |
FT1202000034 |
| 1/4-20UNC |
80 |
17 |
FT1202000035 |
| 5/16-18UNC |
90 |
20 |
FT1202000036 |
| 3/8-16UNC |
100 |
22 |
FT1202000037 |
| No.0-80UNF |
40 |
8 |
FT1202000038 |
| No.1-72UNF |
40 |
8 |
FT1202000039 |
| No.2-64UNF |
45 |
9 |
FT1202000040 |
| No.3-56UNF |
50 |
9 |
FT1202000041 |
| No.4-48UNF |
56 |
11 |
FT1202000042 |
| No.5-44UNF |
56 |
11 |
FT1202000043 |
| No.6-40UNF |
56 |
12 |
FT1202000044 |
| No.8-36UNF |
63 |
13 |
FT1202000045 |
| No.10-32UNF |
70 |
15 |
FT1202000046 |
| No.12-28UNF |
80 |
16 |
FT1202000047 |
| 1/4-28UNF |
80 |
17 |
FT1202000048 |
| 5/16-24UNF |
90 |
20 |
FT1202000049 |
| 3/8-24UNF |
100 |
22 |
FT1202000050 |
| ■DIN374/MF SPIRAL FLUTED TAPS—High Speed Steel |
|
| Size |
Overall Length |
Thread Length |
Item No. |
| M3x0.35 |
56 |
10 |
FT1202000051 |
| M3.5x0.35 |
56 |
10 |
FT1202000052 |
| M4x0.35 |
63 |
10 |
FT1202000053 |
| M4x0.5 |
63 |
10 |
FT1202000054 |
| M5x0.5 |
70 |
12 |
FT1202000055 |
| M6x0.5 |
80 |
14 |
FT1202000056 |
| M6x0.75 |
80 |
14 |
FT1202000057 |
| M7x0.75 |
80 |
14 |
FT1202000058 |
| M8x0.5 |
80 |
19 |
FT1202000051 |
| M8x0.75 |
80 |
19 |
FT1202000052 |
| M8x1 |
90 |
22 |
FT1202000053 |
| M9x1 |
90 |
22 |
FT1202000054 |
| M10x0.5 |
90 |
20 |
FT1202000055 |
| M10x0.75 |
100 |
20 |
FT1202000056 |
| M10x1 |
90 |
20 |
FT1202000057 |
| M10x1.25 |
90 |
24 |
FT1202000058 |
| M11x1 |
100 |
20 |
FT1202000059 |
| M11x1.25 |
100 |
20 |
FT1202000060 |
| M12x0.75 |
100 |
22 |
FT1202000061 |
| M12x1 |
100 |
22 |
FT1202000062 |
| M12x1.25 |
100 |
22 |
FT1202000063 |
| M12x1.5 |
100 |
22 |
FT1202000064 |
| M13x1 |
100 |
22 |
FT1202000065 |
| M13x1.5 |
100 |
22 |
FT1202000066 |
| M14x0.75 |
100 |
22 |
FT1202000067 |
| M14x1 |
100 |
22 |
FT1202000068 |
| M14x1.25 |
100 |
22 |
FT1202000069 |
| M14x1.5 |
100 |
22 |
FT1202000070 |
| M16x1 |
100 |
22 |
FT1202000071 |
| M16x1.25 |
100 |
22 |
FT1202000072 |
| M16x1.5 |
100 |
22 |
FT1202000073 |
| M18x1 |
110 |
25 |
FT1202000074 |
| M18x1.5 |
110 |
25 |
FT1202000075 |
| M18x2 |
125 |
34 |
FT1202000076 |
| M20x1 |
125 |
25 |
FT1202000077 |
| M20x1.5 |
125 |
25 |
FT1202000078 |
| M20x2 |
140 |
34 |
FT1202000079 |
| M22x1 |
125 |
25 |
FT1202000080 |
| M22x1.5 |
125 |
25 |
FT1202000081 |
| M22x2 |
140 |
34 |
FT1202000082 |
| M24x1 |
140 |
28 |
FT1202000083 |
| M24x1.5 |
140 |
28 |
FT1202000084 |
| M24x2 |
140 |
28 |
FT1202000085 |
| M26x1.5 |
140 |
28 |
FT1202000086 |
| M27x2 |
140 |
28 |
FT1202000087 |
| M28x1.5 |
140 |
28 |
FT1202000088 |
| M30x1.5 |
150 |
28 |
FT1202000089 |
| M30x2 |
150 |
28 |
FT1202000090 |
| M32x1.5 |
150 |
28 |
FT1202000091 |
| M35x1.5 |
170 |
30 |
FT1202000092 |
| M36x1.5 |
170 |
30 |
FT1202000093 |
| M38x1.5 |
170 |
30 |
FT1202000094 |
| M40x1.5 |
170 |
30 |
FT1202000095 |
| M42x1.5 |
170 |
30 |
FT1202000096 |
| M45x1.5 |
180 |
32 |
FT1202000097 |
| M48x1.5 |
190 |
32 |
FT1202000098 |
| M50x1.5 |
190 |
32 |
FT1202000099 |
| M52x1.5 |
190 |
32 |
FT1202000100 |
| ■DIN374/UNF SPIRAL FLUTED TAPS—High Speed Steel |
|
| Size |
Overall Length |
Thread Length |
Item No. |
| 1/4-28UNF |
80 |
17 |
FT1202000101 |
| 5/16-24UNF |
90 |
20 |
FT1202000102 |
| 3/8-24UNF |
90 |
16 |
FT1202000103 |
| 7/16-20UNF |
100 |
22 |
FT1202000104 |
| 1/2-20UNF |
100 |
22 |
FT1202000105 |
| 9/16-18UNF |
100 |
22 |
FT1202000106 |
| 5/8-18UNF |
100 |
22 |
FT1202000107 |
| 3/4-16UNF |
100 |
25 |
FT1202000108 |
| 7/8-14UNF |
125 |
25 |
FT1202000109 |
| 1-12UNF |
140 |
28 |
FT1202000110 |
| 1-1/8 - 12UNF |
150 |
28 |
FT1202000111 |
| 1-1/4 - 12UNF |
150 |
28 |
FT1202000112 |
| 1-3/8 - 12UNF |
170 |
30 |
FT1202000113 |
| 1-1/2 - 12UNF |
170 |
30 |
FT1202000114 |
| ■DIN376/M SPIRAL FLUTED TAPS—High Speed Steel |
|
| Size |
Overall Length |
Thread Length |
Item No. |
| M3x0.5 |
56 |
11 |
FT1202000115 |
| M4x0.7 |
63 |
13 |
FT1202000116 |
| M5x0.8 |
70 |
16 |
FT1202000117 |
| M6x1 |
80 |
19 |
FT1202000118 |
| M7x1 |
80 |
19 |
FT1202000119 |
| M8x1.25 |
90 |
22 |
FT1202000120 |
| M9x1.25 |
90 |
22 |
FT1202000121 |
| M10x1.5 |
100 |
24 |
FT1202000122 |
| M11x1.5 |
100 |
24 |
FT1202000123 |
| M12x1.75 |
110 |
29 |
FT1202000124 |
| M14x2 |
110 |
30 |
FT1202000125 |
| M16x2 |
110 |
32 |
FT1202000126 |
| M18x2.5 |
125 |
34 |
FT1202000127 |
| M20x2.5 |
140 |
34 |
FT1202000128 |
| M22x2.5 |
140 |
34 |
FT1202000129 |
| M24x3 |
160 |
38 |
FT1202000130 |
| M27x3 |
160 |
38 |
FT1202000131 |
| M30x3.5 |
180 |
45 |
FT1202000132 |
| M33x3.5 |
180 |
50 |
FT1202000133 |
| M36x4 |
200 |
56 |
FT1202000134 |
| M39x4 |
200 |
60 |
FT1202000135 |
| M42x4.5 |
200 |
60 |
FT1202000136 |
| M45x4.5 |
220 |
65 |
FT1202000137 |
| M48x5 |
250 |
70 |
FT1202000138 |
| M52x5 |
250 |
70 |
FT1202000139 |
| ■DIN376/UNC/UNF SPIRAL FLUTED TAPS—High Speed Steel |
|
| Size |
Overall Length |
Thread Length |
Item No. |
| 1/4UNC |
80 |
17 |
FT1202000140 |
| 5/16UNC |
90 |
20 |
FT1202000141 |
| 3/8-16UNC |
100 |
22 |
FT1202000142 |
| 7/16-14UNC |
100 |
22 |
FT1202000143 |
| 1/2-13UNC |
110 |
24 |
FT1202000144 |
| 9/16-12UNC |
110 |
26 |
FT1202000145 |
| 5/8-11UNC |
110 |
27 |
FT1202000146 |
| 3/4-10UNC |
125 |
30 |
FT1202000147 |
| 7/8-9UNC |
140 |
32 |
FT1202000148 |
| 1î-8UNC |
160 |
36 |
FT1202000149 |
| 1-1/8-7UNC |
180 |
40 |
FT1202000150 |
| 1-1/4-7UNC |
180 |
40 |
FT1202000151 |
| 1-3/8-6UNC |
200 |
50 |
FT1202000152 |
| 1-1/2-6UNC |
200 |
50 |
FT1202000153 |
| 1/4-28UNF |
80 |
17 |
FT1202000154 |
| 5/16-24UNF |
90 |
20 |
FT1202000155 |
| 3/8-24UNF |
90 |
16 |
FT1202000156 |
| 7/16-20UNF |
100 |
22 |
FT1202000157 |
| 1/2-20UNF |
100 |
22 |
FT1202000158 |
| 9/16-18UNF |
100 |
22 |
FT1202000159 |
| 5/8-18UNF |
100 |
22 |
FT1202000160 |
| 3/4-16UNF |
110 |
25 |
FT1202000161 |
| 7/8-14UNF |
125 |
25 |
FT1202000162 |
| 1î-12UNF |
140 |
28 |
FT1202000163 |
| 1-1/8-12UNF |
150 |
28 |
FT1202000164 |
| 1-1/4-12UNF |
150 |
28 |
FT1202000165 |
| 1-3/8-12UNF |
170 |
30 |
FT1202000166 |
| 1-1/2-12UNF |
170 |
30 |
FT1202000167 |
| ■DIN376 W/BSF SPIRAL FLUTED TAPS—High Speed Steel |
|
| Size |
Overall Length |
Thread Length |
Item No. |
| W3/8-16 |
100 |
22 |
FT1202000168 |
| W7/16-14 |
100 |
22, |
FT1202000169 |
| W1/2-12 |
110 |
24 |
FT1202000170 |
| W9/16-12 |
110 |
26 |
FT1202000171 |
| W5/8-11 |
110 |
27 |
FT1202000172 |
| W3/4-10 |
125 |
30 |
FT1202000173 |
| W7/8-11 |
140 |
32 |
FT1202000174 |
| W1î-8 |
160 |
36 |
FT1202000175 |
| W1-1/8-7 |
180 |
40 |
FT1202000176 |
| W1-1/4-7 |
180 |
40 |
FT1202000177 |
| W1-3/8-6 |
200 |
50 |
FT1202000178 |
| W1-1/2-6 |
200 |
50 |
FT1202000179 |
| W1-3/4-5 |
220 |
58 |
FT1202000180 |
| W2î-4-1/2 |
250 |
65 |
FT1202000181 |
| BSF1/4-26 |
80 |
17 |
FT1202000182 |
| BSF5/16-22 |
90 |
20 |
FT1202000183 |
| BSF3/8-20 |
100 |
22 |
FT1202000184 |
| BSF7/16-18 |
100 |
22 |
FT1202000185 |
| BSF1/2-16 |
110 |
24 |
FT1202000186 |
| BSF5/8-14 |
110 |
27 |
FT1202000187 |
| BSF3/4-12 |
125 |
30 |
FT1202000188 |
| BSF7/8-11 |
140 |
32 |
FT1202000189 |
| BSF1"-10 |
160 |
36 |
FT1202000190 |
