Micro Grain Carbide Taper Flute 4 Flutes Square End Mills
Suitable materials for operations:
Iron Materials,Carbon Steel,Cast Iron,Molding Steel,Alloy Steel,Tool Steel,Steel with Heat Treatment,Welding steel meterial
|
|
|
|
|
|

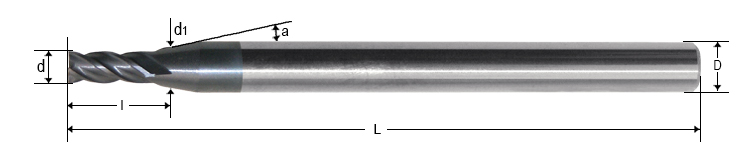

| Taper First Diameter |
Flute Length |
Taper |
Taper Last Diameter |
Overall Length |
Shank Diameter |
Item No. |
| d |
l |
a |
d1 |
L |
D |
| 3 |
10 |
0.5 |
3.17 |
50 |
4 |
FT0508015003 |
| 3 |
10 |
1 |
3.35 |
50 |
4 |
FT0508025003 |
| 3 |
10 |
1.5 |
3.52 |
50 |
4 |
FT0508035003 |
| 3 |
10 |
2 |
3.07 |
50 |
4 |
FT0508045003 |
| 3 |
10 |
2.5 |
3.87 |
50 |
4 |
FT0508055003 |
| 3 |
10 |
3 |
4.05 |
50 |
6 |
FT0508065003 |
| 3 |
10 |
5 |
4.75 |
50 |
6 |
FT0508075003 |
| 4 |
15 |
0.5 |
4.26 |
50 |
6 |
FT0508085004 |
| 4 |
15 |
1 |
4.52 |
50 |
6 |
FT0508095004 |
| 4 |
15 |
1.5 |
4.79 |
50 |
6 |
FT0508105004 |
| 4 |
15 |
2 |
5.04 |
50 |
6 |
FT0508115004 |
| 4 |
15 |
2.5 |
5.31 |
50 |
6 |
FT0508125004 |
| 4 |
15 |
3 |
5.57 |
50 |
6 |
FT0508135004 |
| 4 |
15 |
3 |
6.62 |
60 |
8 |
FT0508146004 |
| 5 |
20 |
0.5 |
5.34 |
50 |
6 |
FT0508155005 |
| 5 |
20 |
1 |
5.7 |
50 |
6 |
FT0508165005 |
| 5 |
20 |
1.5 |
6.04 |
60 |
8 |
FT0508176005 |
| 5 |
20 |
2 |
6.39 |
60 |
8 |
FT0508186005 |
| 5 |
20 |
2.5 |
6.74 |
60 |
8 |
FT0508196005 |
| 5 |
20 |
3 |
7.1 |
60 |
8 |
FT0508206005 |
| 5 |
20 |
5 |
8.5 |
75 |
10 |
FT0508217505 |
| 6 |
20 |
0.5 |
6.35 |
60 |
6 |
FT0508226006 |
| 6 |
20 |
1 |
6.7 |
60 |
6 |
FT0508236006 |
| 6 |
20 |
1.5 |
7.05 |
60 |
6 |
FT0508246006 |
| 6 |
20 |
2 |
7.4 |
60 |
6 |
FT0508256006 |
| 6 |
20 |
2.5 |
7.75 |
60 |
6 |
FT0508266006 |
| 6 |
20 |
3 |
8.1 |
75 |
10 |
FT0508277506 |
| 6 |
20 |
5 |
9.5 |
75 |
10 |
FT0508287506 |
| 8 |
25 |
0.5 |
8.44 |
75 |
10 |
FT0508297508 |
| 8 |
25 |
1 |
8.87 |
75 |
10 |
FT0508307508 |
| 8 |
25 |
1.5 |
9.31 |
75 |
10 |
FT0508317508 |
| 8 |
25 |
2 |
9.74 |
75 |
10 |
FT0508327508 |
| 8 |
25 |
3 |
10.62 |
75 |
10 |
FT0508337508 |
| 8 |
25 |
5 |
12.37 |
75 |
12 |
FT0508347508 |
| 10 |
35 |
0.5 |
10.61 |
75 |
12 |
FT0508357510 |
| 10 |
35 |
1 |
11.22 |
75 |
12 |
FT0508367510 |
| 10 |
35 |
1.5 |
11.83 |
75 |
12 |
FT0508377510 |
| 10 |
35 |
2 |
12.44 |
75 |
12 |
FT0508387510 |
| 10 |
35 |
3 |
13.67 |
75 |
12 |
FT0508397510 |
| 10 |
35 |
5 |
16.12 |
100 |
16 |
FT0508400010 | |
