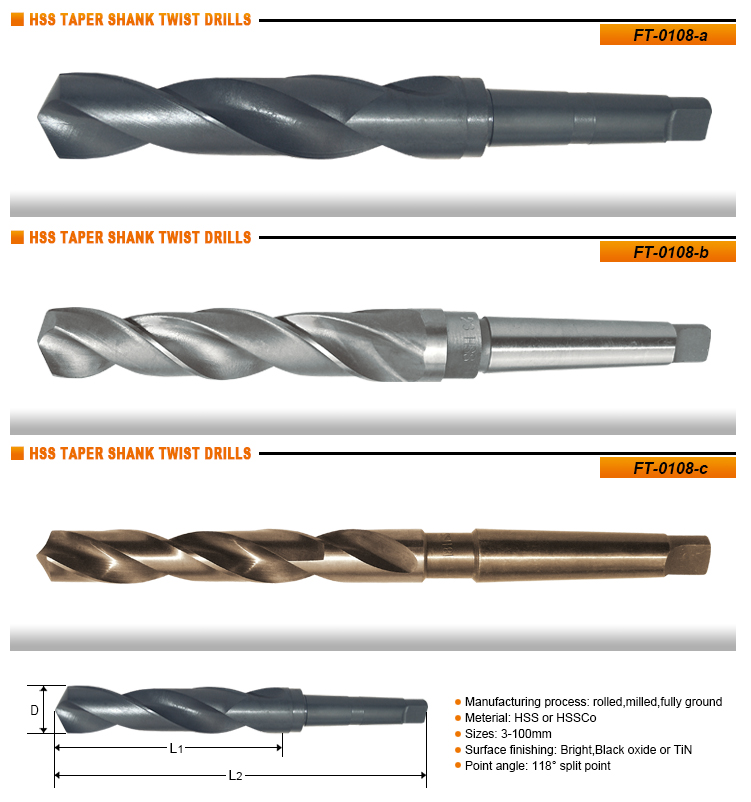

DIN345

Diameter	Flute Length	Overall Lenth	Item No.
D	L1	L2	Item No.
3	33	114	FT0108030114
3.2	36	117	FT0108320117
3.5	39	120	FT0108350120
3.8	43	124	FT0108380124
4	43	124	FT0108040124
4.2	43	124	FT0108420124
4.5	47	128	FT0108450128
4.8	52	133	FT0108480133
5	52	133	FT0108050133
5.2	52	133	FT0108520133
5.5	57	138	FT0108550138
5.8	57	138	FT0108580138
6	57	138	FT0108060138
6.2	63	144	FT0108620144
6.5	63	144	FT0108650144
6.8	69	150	FT0108680150
7	69	150	FT0108070150
7.2	69	150	FT0108720150
7.5	69	150	FT0108750150
7.8	75	156	FT0108780156
8	75	156	FT0108080156
8.2	75	156	FT0108820156
8.5	75	156	FT0108850156
8.8	81	162	FT0108880162
9	81	162	FT0108090162
9.2	81	162	FT0108920162
9.5	81	162	FT0108950162
9.8	87	168	FT0108980168
10	87	168	FT0108100168
10.2	87	168	FT0108102168
10.5	87	168	FT0108105168
10.8	94	175	FT0108108175
11	94	175	FT0108110175
11.2	94	175	FT0108112175
11.5	94	175	FT0108115175
11.8	94	175	FT0108118175
12	101	182	FT0108120182
12.2	101	182	FT0108122182
12.5	101	182	FT0108125182
12.8	101	182	FT0108128182
13	101	182	FT0108130182
13.2	101	182	FT0108132182
13.5	108	189	FT0108135189
13.8	108	189	FT0108138189
14	108	189	FT0108140189
14.3	114	212	FT0108143212
14.5	114	212	FT0108145212
14.8	114	212	FT0108148212
15	114	212	FT0108150212
15.3	120	218	FT0108153218
15.5	120	218	FT0108155218
15.75	120	218	FT0108157218
16	120	218	FT0108160218
16.25	125	223	FT0108162223
16.5	125	223	FT0108165223
16.75	125	223	FT0108167223
17	125	223	FT0108170223
17.25	130	228	FT0108172228
17.5	130	228	FT0108175228
17.75	130	228	FT0108177228
18	130	228	FT0108180228
18.25	135	233	FT0108182233
18.5	135	233	FT0108185233
18.75	135	233	FT0108187233
19	135	233	FT0108190233
19.25	140	238	FT0108192238
19.5	140	238	FT0108195238
19.75	140	238	FT0108197238
20	140	238	FT0108200238
20.25	145	243	FT0108202243
20.5	145	243	FT0108205243
20.75	145	243	FT0108207243
21	145	243	FT0108210243
21.25	150	248	FT0108212248
21.5	150	248	FT0108215248
21.75	150	248	FT0108217248
22	150	248	FT0108220248
22.25	150	248	FT0108222248
22.5	155	253	FT0108225253
22.75	155	253	FT0108227253
23	155	253	FT0108230253
23.25	155	276	FT0108232276
23.5	155	276	FT0108235276
23.75	160	281	FT0108237281
24	160	281	FT0108240281
24.25	160	281	FT0108242281
24.5	160	281	FT0108245281
24.75	160	281	FT0108247281
25	160	281	FT0108250281
25.25	165	286	FT0108252286
25.5	165	286	FT0108255286
25.75	165	286	FT0108257286
26	165	286	FT0108260286
26.25	165	286	FT0108262286
26.5	165	286	FT0108265286
26.75	170	291	FT0108267291
27	170	291	FT0108270291
27.25	170	291	FT0108272291
27.5	170	291	FT0108275291
27.75	170	291	FT0108277291
28	170	291	FT0108280291
28.25	175	296	FT0108282296
28.5	175	296	FT0108285296
28.75	175	296	FT0108287296
29	175	296	FT0108290296
29.25	175	296	FT0108292296
29.5	175	296	FT0108295296
29.75	175	296	FT0108297296
30	175	296	FT0108300296
30.25	180	301	FT0108302301
30.5	180	301	FT0108305301
30.75	180	301	FT0108307301
31	180	301	FT0108310301
31.25	180	301	FT0108312301
31.5	180	301	FT0108315301
31.75	185	306	FT0108317306
32	185	334	FT0108320334
32.5	185	334	FT0108325334
33	185	334	FT0108330334
33.5	185	334	FT0108335334
34	190	339	FT0108340339
34.5	190	339	FT0108345339
35	190	339	FT0108350339
35.5	190	339	FT0108355339
36	195	344	FT0108360344
36.5	195	344	FT0108365344
37	195	344	FT0108370344
37.5	195	344	FT0108375344
38	200	349	FT0108380349
38.5	200	349	FT0108385349
39	200	349	FT0108390349
39.5	200	349	FT0108395349
40	200	349	FT0108400349
40.5	205	354	FT0108405354
41	205	354	FT0108410354
41.5	205	354	FT0108415354
42	205	354	FT0108420354
42.5	205	354	FT0108425354
43	210	359	FT0108430359
43.5	210	359	FT0108435359
44	210	359	FT0108440359
44.5	210	359	FT0108445359
45	210	359	FT0108450359
45.5	215	364	FT0108455364
46	215	364	FT0108460364
46.5	215	364	FT0108465364
47	215	364	FT0108470364
47.5	215	364	FT0108475364
48	220	369	FT0108480369
48.5	220	369	FT0108485369
49	220	369	FT0108490369
49.5	220	369	FT0108495369
50	220	369	FT0108500369
50.5	225	374	FT0108505374
51	225	374	FT0108510374
52	225	374	FT0108520374
53	225	374	FT0108530374
54	230	417	FT010854417
55	230	417	FT0108550417
56	230	417	FT0108560417
57	235	422	FT0108570422
58	235	422	FT0108580422
59	235	422	FT0108590422
60	235	422	FT0108600422
61	240	427	FT0108610427
62	240	427	FT0108620427
63	240	427	FT0108630427
64	245	432	FT0108640432
65	245	432	FT0108650432
66	245	432	FT0108660432
67	245	432	FT0108670432
68	250	437	FT0108680437
69	250	437	FT0108690437
70	250	437	FT0108700437
71	250	437	FT0108710437
72	255	442	FT0108720442
73	255	442	FT0108730442
74	255	442	FT0108740442
75	255	442	FT0108750442
76	260	447	FT0108760447
77	260	514	FT0108770514
78	260	514	FT0108780514
79	260	514	FT0108790514
80	260	514	FT0108800514
81	265	519	FT0108810519
82	265	519	FT0108820519
83	265	519	FT0108830519
84	265	519	FT0108840519
85	265	519	FT0108850519
86	270	524	FT0108860524
87	270	524	FT0108870524
88	270	524	FT0108880524
89	270	524	FT0108890524
90	270	524	FT0108900524
91	275	529	FT0108910529
92	275	529	FT0108920529
93	275	529	FT0108930529
94	275	529	FT0108940529
95	275	529	FT0108950529
96	280	534	FT0108960534
97	280	534	FT0108970534
98	280	534	FT0108980534
99	280	534	FT0108990534
100	280	534	FT0108000534
