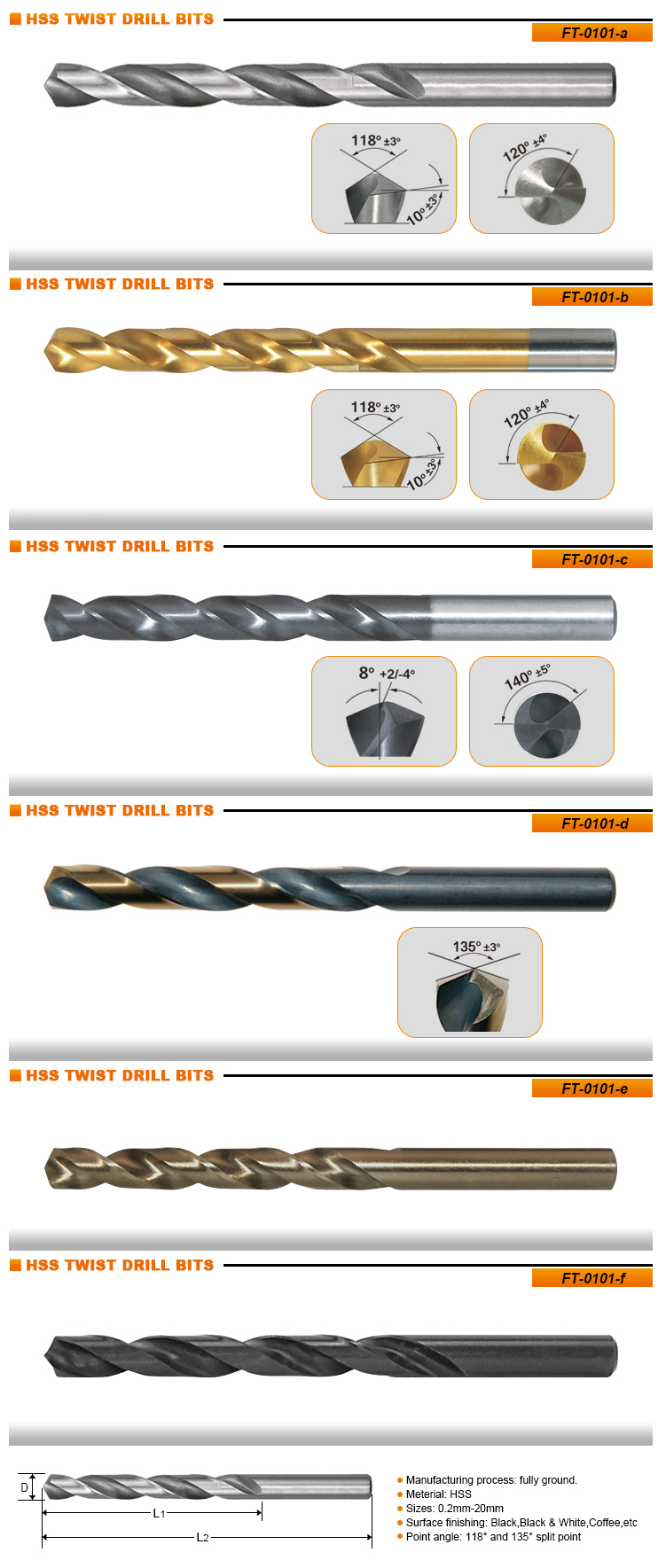

DIN338

Diameter	Flute Length	Overall Length	Item No.
D	L1	L2	Item No.
0.2	2.5	19	FT0101002019
0.22	2.5	19	FT0101022019
0.25	3	19	FT0101025019
0.28	3	19	FT0101028019
0.3	3	19	FT0101003019
0.32	4	19	FT0101032019
0.35	4	19	FT0101035019
0.38	4	19	FT0101038019
0.4	5	20	FT0101004020
0.42	5	20	FT0101042020
0.45	5	20	FT0101045020
0.48	5	20	FT0101048020
0.5	6	22	FT0101005022
0.52	6	22	FT0101052022
0.55	7	24	FT0101055024
0.58	7	24	FT0101058024
0.6	7	24	FT0101006024
0.62	8	26	FT0101062026
0.65	8	26	FT0101065026
0.68	9	28	FT0101068028
0.7	9	28	FT0101007028
0.72	9	28	FT0101072028
0.75	9	28	FT0101075028
0.78	10	30	FT0101078030
0.8	10	30	FT0101008030
0.82	10	30	FT0101082030
0.85	10	30	FT0101085030
0.88	11	32	FT0101088032
0.9	11	32	FT0101009032
0.92	11	32	FT0101092032
0.95	11	32	FT0101095032
0.98	12	34	FT0101098034
1	12	34	FT0101010034
1.05	12	34	FT0101105034
1.1	14	36	FT0101110036
1.15	14	36	FT0101115036
1.2	16	38	FT0101120038
1.25	16	38	FT0101125038
1.3	16	38	FT0101130038
1.35	18	40	FT0101135040
1.4	18	40	FT0101140040
1.45	18	40	FT0101145040
1.5	18	40	FT0101150040
1.55	20	43	FT0101155043
1.6	20	43	FT0101160043
1.65	20	43	FT0101165043
1.7	20	43	FT0101170043
1.75	22	46	FT0101175046
1.8	22	46	FT0101180046
1.85	22	46	FT0101185046
1.9	22	46	FT0101190046
1.95	24	49	FT0101195049
2	24	49	FT0101020049
2.05	24	49	FT0101205049
2.1	24	49	FT0101210049
2.15	27	53	FT0101215053
2.2	27	53	FT0101220053
2.25	27	53	FT0101225053
2.3	27	53	FT0101230053
2.35	27	53	FT0101235053
2.4	30	57	FT0101240057
2.45	30	57	FT0101245057
2.5	30	57	FT0101250057
2.55	30	57	FT0101255057
2.6	30	57	FT0101260057
2.65	30	57	FT0101265057
2.7	33	61	FT0101270061
2.75	33	61	FT0101275061
2.8	33	61	FT0101280061
2.85	33	61	FT0101285061
2.9	33	61	FT0101290061
2.95	33	61	FT0101295061
3	33	61	FT0101030061
3.1	36	65	FT0101310065
3.2	36	65	FT0101320065
3.3	36	65	FT0101330065
3.4	39	70	FT0101340070
3.5	39	70	FT0101350070
3.6	39	70	FT0101360070
3.7	39	70	FT0101370070
3.8	43	75	FT0101380070
3.9	43	75	FT0101390070
4	43	75	FT0101040070
4.1	43	75	FT0101410070
4.2	43	75	FT0101420070
4.3	47	80	FT0101430080
4.4	47	80	FT0101440080
4.5	47	80	FT0101450080
4.6	47	80	FT0101460080
4.7	47	80	FT0101470080
4.8	52	86	FT0101480086
4.9	52	86	FT0101490086
5	52	86	FT0101050086
5.1	52	86	FT0101510086
5.2	52	86	FT0101520086
5.3	52	86	FT0101530086
5.4	57	93	FT0101540093
5.5	57	93	FT0101550093
5.6	57	93	FT0101560093
5.7	57	93	FT0101570093
5.8	57	93	FT0101580093
5.9	57	93	FT0101590093
6	57	93	FT0101060093
6.1	63	101	FT0101610101
6.2	63	101	FT0101620101
6.3	63	101	FT0101630101
6.4	63	101	FT0101640101
6.5	63	101	FT0101650101
6.6	63	101	FT0101660101
6.7	63	101	FT0101670101
6.8	69	109	FT0101680109
6.9	69	109	FT0101690109
7	69	109	FT0101070109
7.1	69	109	FT0101710109
7.2	69	109	FT0101720109
7.3	69	109	FT0101730109
7.4	69	109	FT0101740109
7.5	69	109	FT0101750109
7.6	75	117	FT0101760117
7.7	75	117	FT0101770117
7.8	75	117	FT0101780117
7.9	75	117	FT0101790117
8	75	117	FT0101080117
8.1	75	117	FT0101810117
8.2	75	117	FT0101820117
8.3	75	117	FT0101830117
8.4	75	117	FT0101840117
8.5	75	117	FT0101850117
8.6	81	125	FT0101860125
8.7	81	125	FT0101870125
8.8	81	125	FT0101880125
8.9	81	125	FT0101890125
9	81	125	FT0101090125
9.1	81	125	FT0101910125
9.2	81	125	FT0101920125
9.3	81	125	FT0101930125
9.4	81	125	FT0101940125
9.5	81	125	FT0101950125
9.6	87	133	FT0101960133
9.7	87	133	FT0101970133
9.8	87	133	FT0101980133
9.9	87	133	FT0101990133
10	87	133	FT0101100133
10.2	87	133	FT0101102133
10.3	87	133	FT0101103133
10.4	87	133	FT0101104133
10.5	87	133	FT0101105133
10.6	87	133	FT0101106133
10.7	94	142	FT0101107142
10.8	94	142	FT0101108142
10.9	94	142	FT0101109142
11	94	142	FT0101110142
11.1	94	142	FT0101111142
11.2	94	142	FT0101112142
11.3	94	142	FT0101113142
11.4	94	142	FT0101114142
11.5	94	142	FT0101115142
11.6	94	142	FT0101116142
11.7	94	142	FT0101117142
11.8	94	142	FT0101118142
11.9	101	151	FT0101119151
12	101	151	FT0101120151
12.1	101	151	FT0101121151
12.2	101	151	FT0101122151
12.3	101	151	FT0101123151
12.4	101	151	FT0101124151
12.5	101	151	FT0101125151
12.6	101	151	FT0101126151
12.7	101	151	FT0101127151
12.8	101	151	FT0101128151
12.9	101	151	FT0101129151
13	101	151	FT0101130151
13.1	101	151	FT0101131151
13.2	101	151	FT0101132151
13.3	108	160	FT0101133160
13.4	108	160	FT0101134160
13.5	108	160	FT0101135160
13.6	108	160	FT0101136160
13.7	108	160	FT0101137160
13.8	108	160	FT0101138160
13.9	108	160	FT0101139160
14	108	160	FT0101140160
14.25	114	169	FT0101142169
14.5	114	169	FT0101145169
14.75	114	169	FT0101147169
15	114	169	FT0101150169
15.25	120	178	FT0101152178
15.5	120	178	FT0101155178
15.75	120	178	FT0101157178
16	120	178	FT0101160178
16.25	125	184	FT0101162184
16.5	125	184	FT0101165184
16.75	125	184	FT0101167184
17	125	184	FT0101170184
17.25	130	191	FT0101172191
17.5	130	191	FT0101175191
17.75	130	191	FT0101177191
18	130	191	FT0101180191
18.5	135	198	FT0101185198
18.75	135	198	FT0101187198
19	135	198	FT0101190198
19.25	140	205	FT0101192205
19.5	140	205	FT0101195205
19.75	140	205	FT0101197205
20	140	205	FT0101200205
